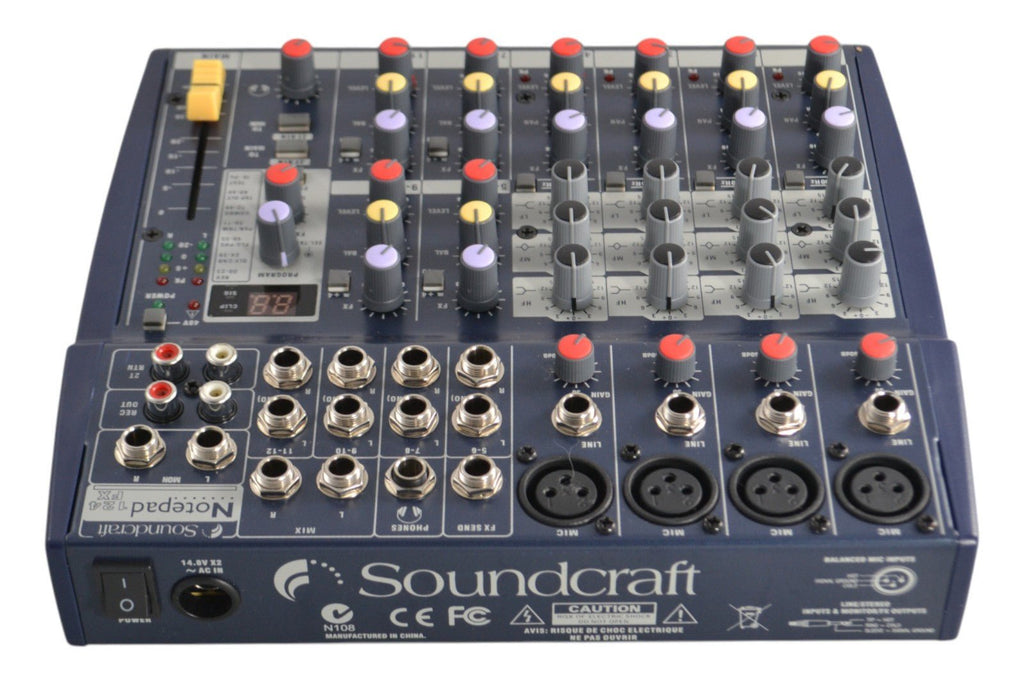

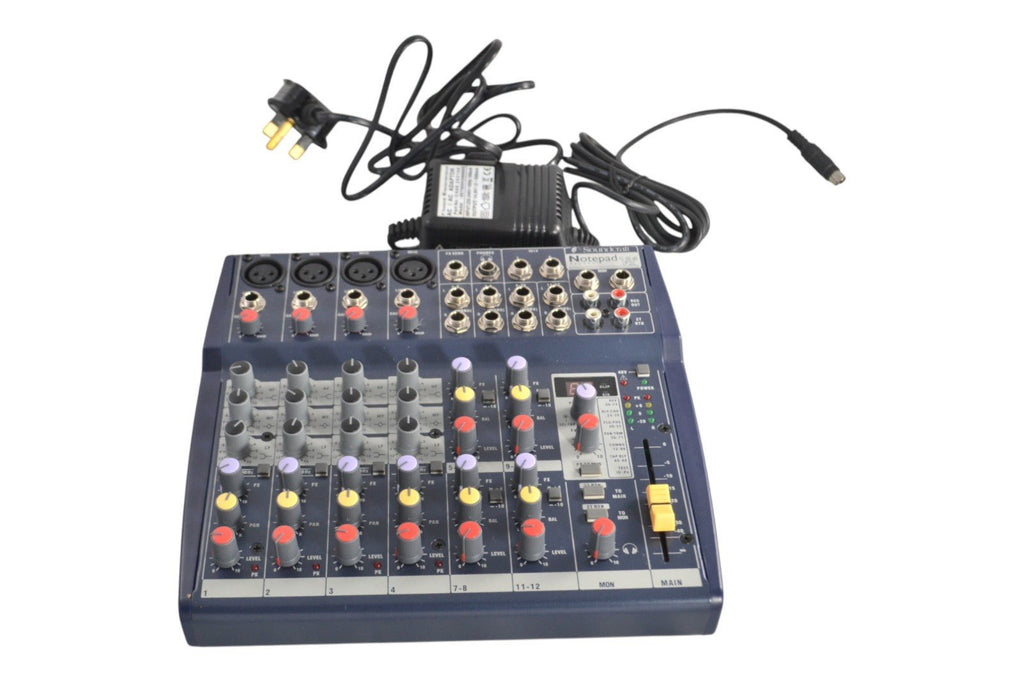

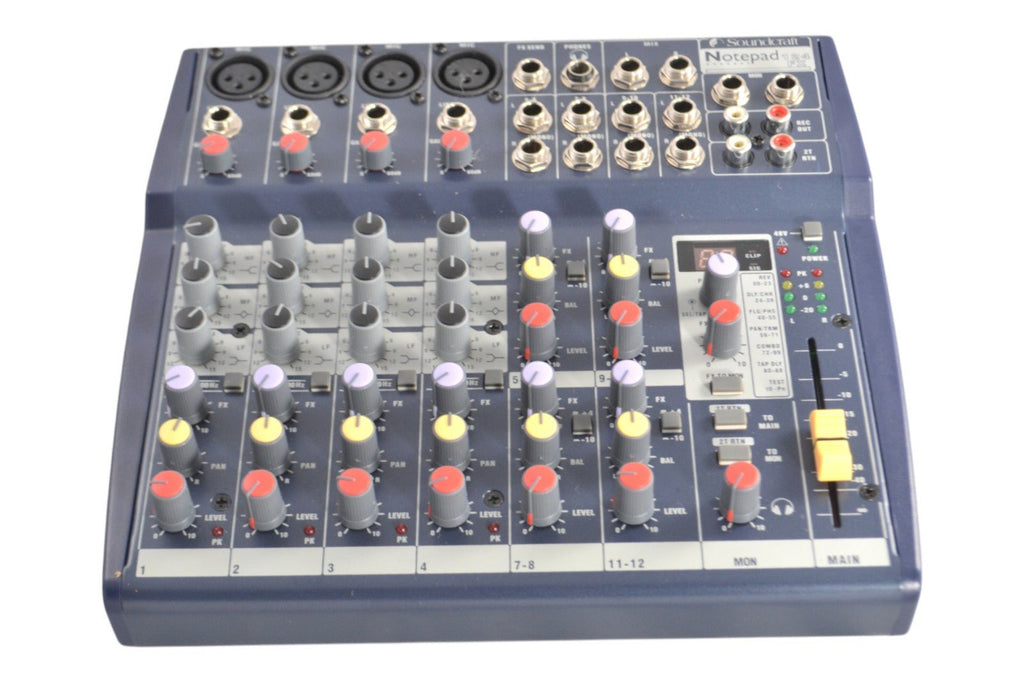

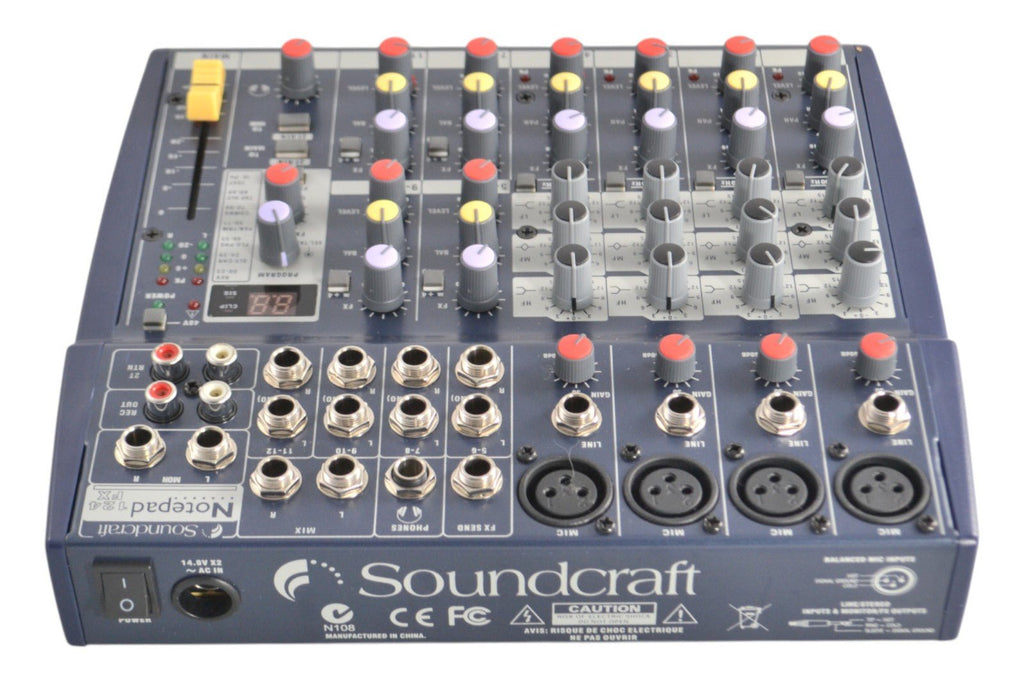

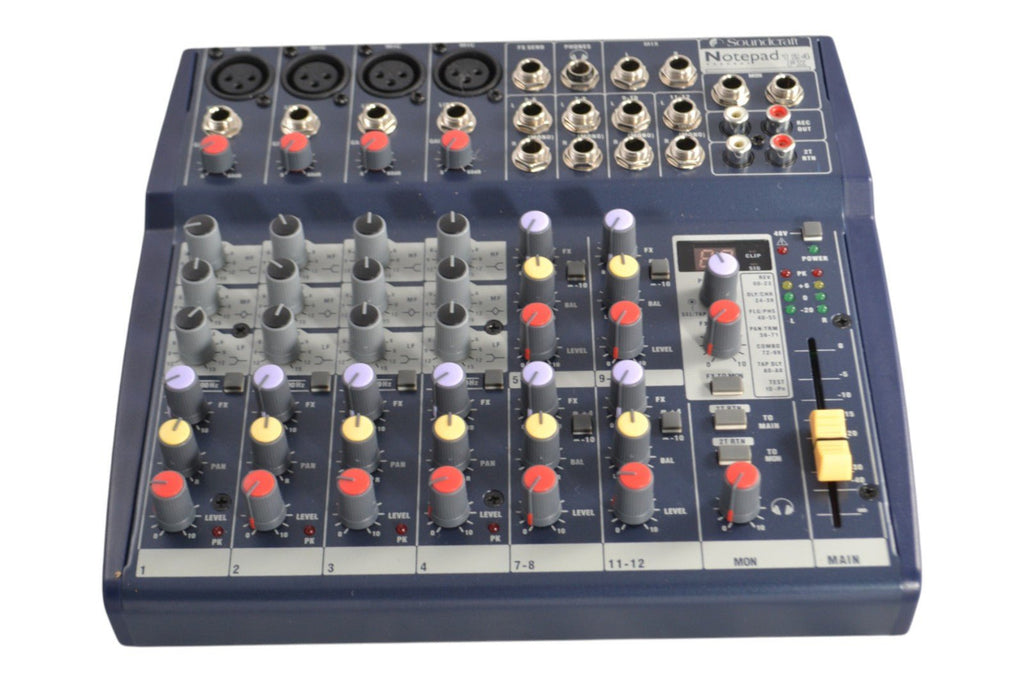

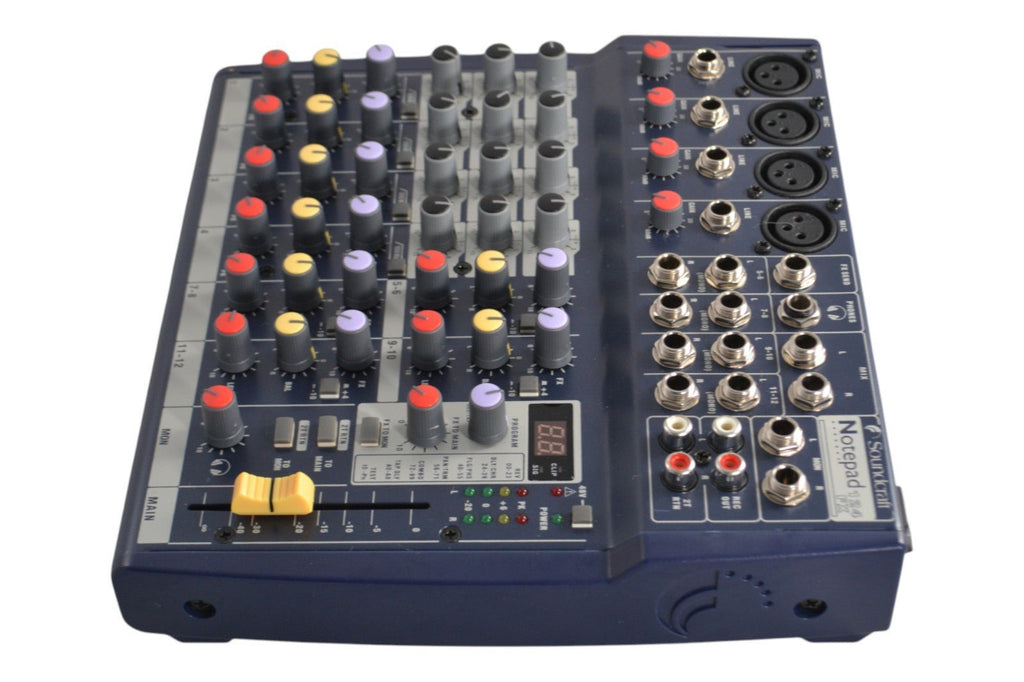

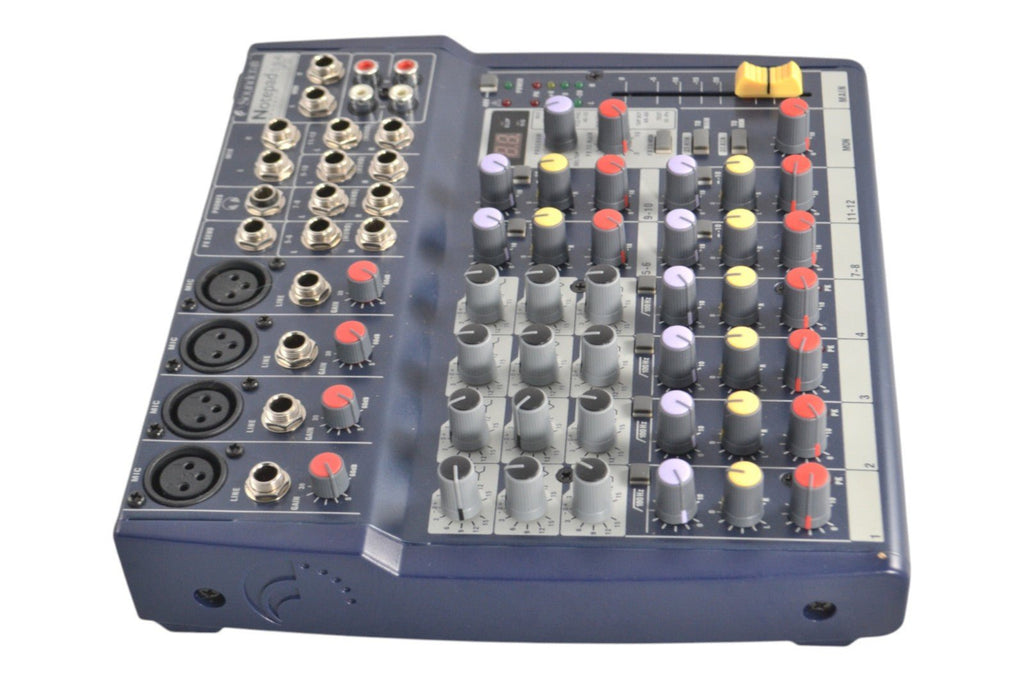

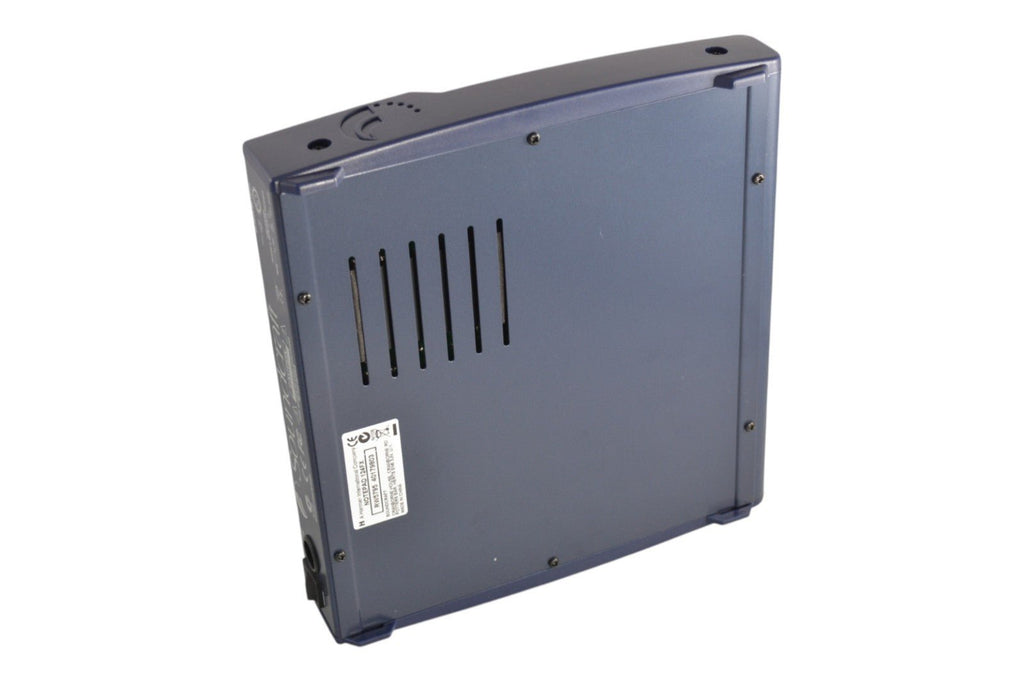

Soundcraft Notepad 124FX Mixer with UK PSU

Key Specifications

Inputs & Outputs

• Mono Inputs: 4 × XLR mic/line inputs with GB30 mic preamps, each featuring a 100 Hz high-pass filter.

• Stereo Inputs: 4 stereo line channels plus a dedicated 2-track stereo input for CD or playback devices.

• Recording I/O: Separate record outputs (RCA/Phono) alongside stereo 2-track input.

• Aux/FX Send: One Aux/FX send (shared)—used for external effects or routing to stage monitors—and an FX return integrated into the mix.

• Outputs: Balanced main L/R outputs, headphone/monitor output, and tape I/O.

EQ & Effects

• EQ (Mono Channels): 3-band “British” EQ with ±15 dB at Low (80 Hz), Mid (1 kHz), and High (12 kHz), with Q ≈ 0.7.

• Effects Processor: Built-in digital FX with over 100 effects, including reverbs, delays, modulation, pink noise, and a test-tone mode. Tap-tempo control is available.

Performance & Technical Specs

• Frequency Response: ±1 dB at 20 Hz to –1.5 dB at 20 kHz.

• THD (Total Harmonic Distortion): < 0.005 % at 1 kHz.

• Mic Input EIN (Equivalent Input Noise): –128.5 dBm (150 Ω source).

• Noise (Aux, Mix, Master): < –85 dBu (@ 0 dB, unity).

• Crosstalk (@ 1 kHz): Channel faders > 87 dB; Master faders > 100 dB.

• CMRR: > 90 dB.

Physical & Power

• Power Consumption: Less than 40 W.

• Operating Temperature: 5 °C to 40 °C.

• Dimensions: 242 × 220 × 37 mm (9.53″ × 8.66″ × 1.46″).
