Linn AV 5105 Stereo Power Amplifier Black Home Audio HiFi
Linn AV 5105 Stereo Power Amplifier Black Home Audio HiFi

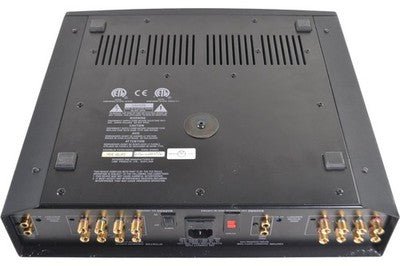

Linn AV5105, serial 002537. This unit carries an underside service label (‘CAP 413 / FTD’) and is fitted with 6800uF 80V Dubilier main capacitors, which match the widely cited updated specification associated with the official AV5105 capacitor recall/service bulletin. Based on physical inspection and published recall information, this unit appears very likely to have had the recall-related capacitor update completed.
The Linn AV 5105 is a stereo (2-channel) dual-mono power amplifier rated at 100 W per channel into 8Ω and 200 W per channel into 4Ω, featuring a wide frequency response of 2 Hz–50 kHz, 28.6 dB gain, and 1.05 V input sensitivity; it provides two RCA line inputs (left/right) with corresponding line outputs for signal pass-through, and a total of eight pairs of parallel speaker output terminals (four per channel), with built-in protection for overload, short circuit, and thermal conditions, housed in a compact chassis measuring approximately 80 × 381 × 355 mm and weighing around 6.5 kg.
