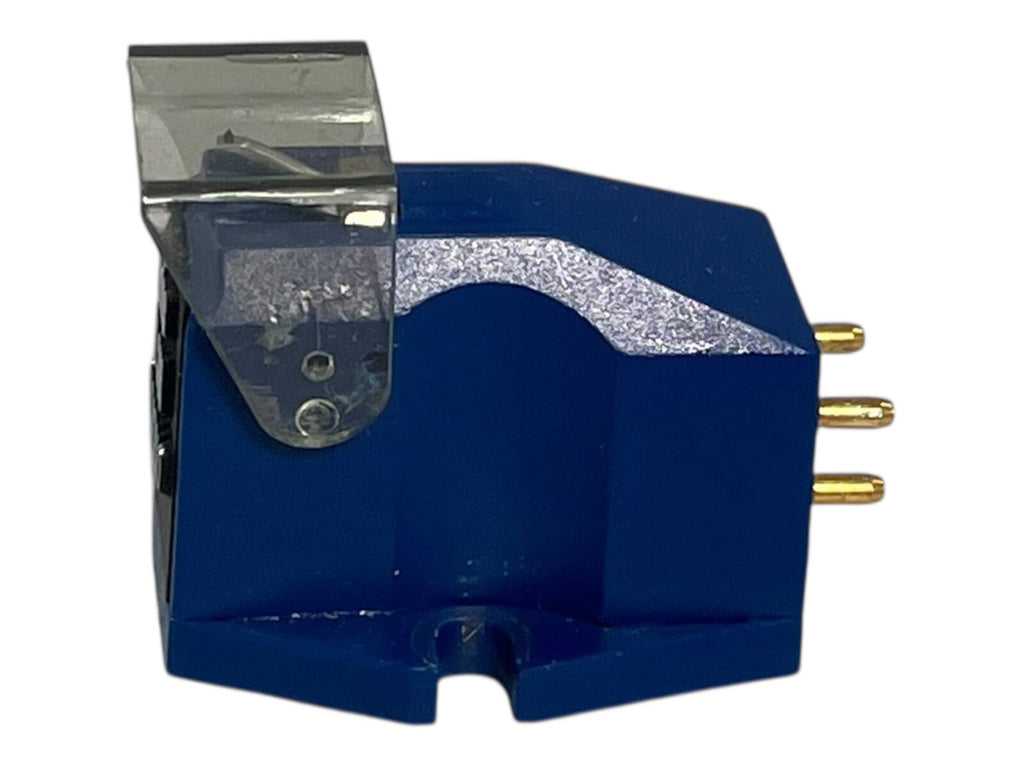

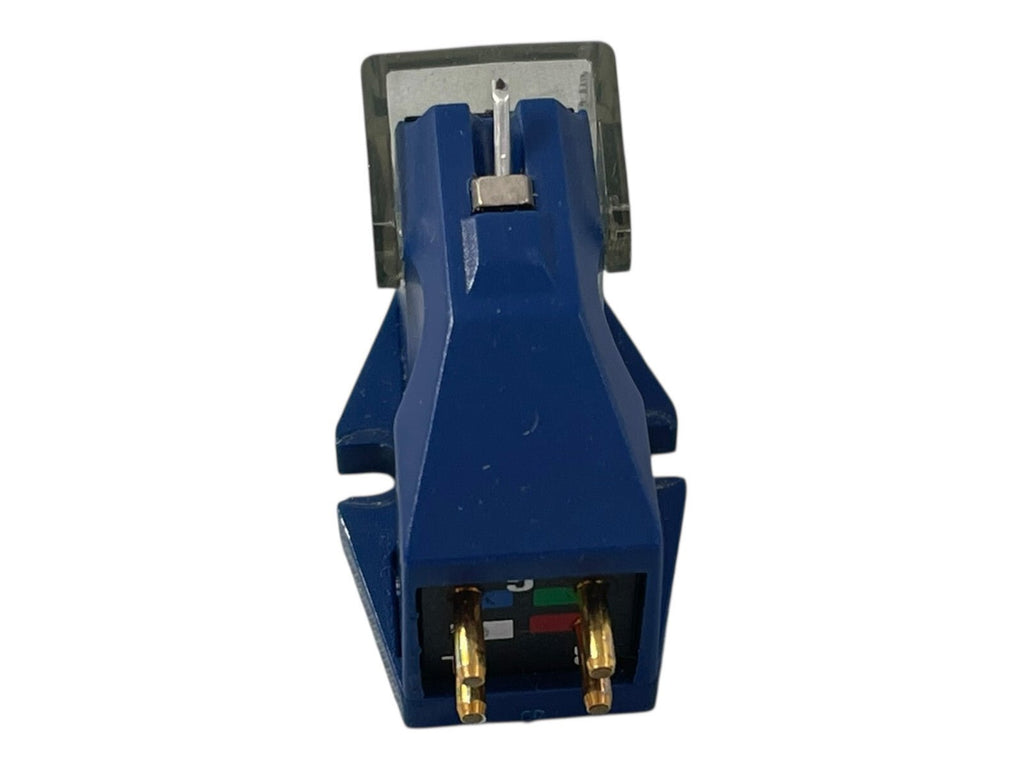

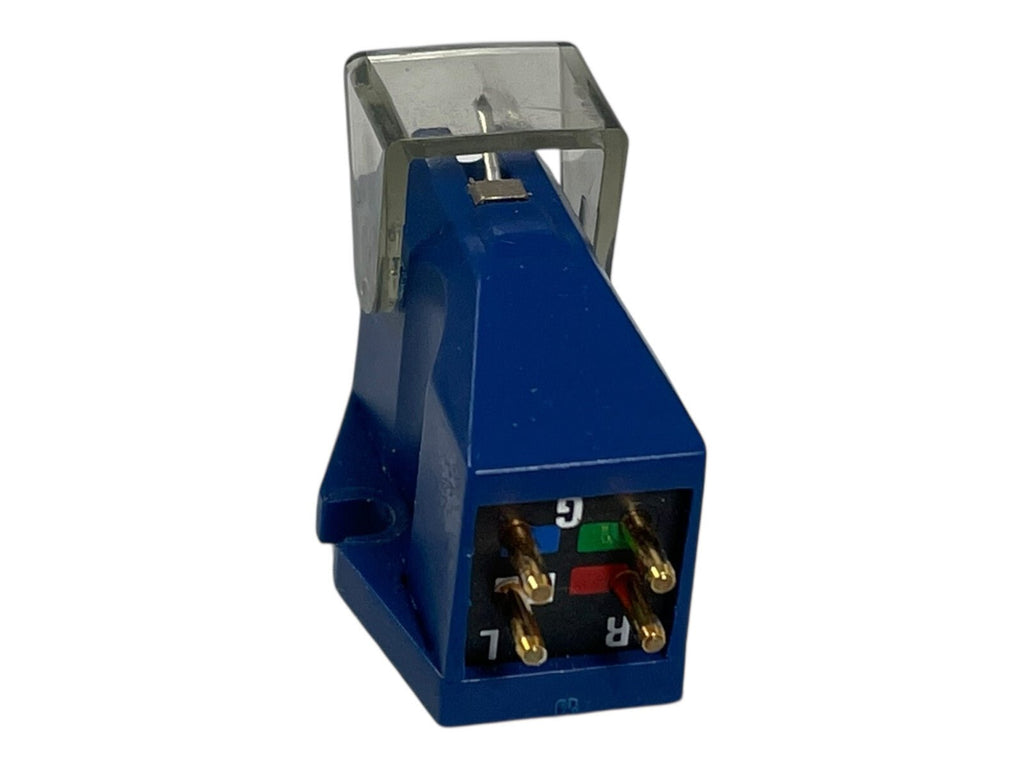

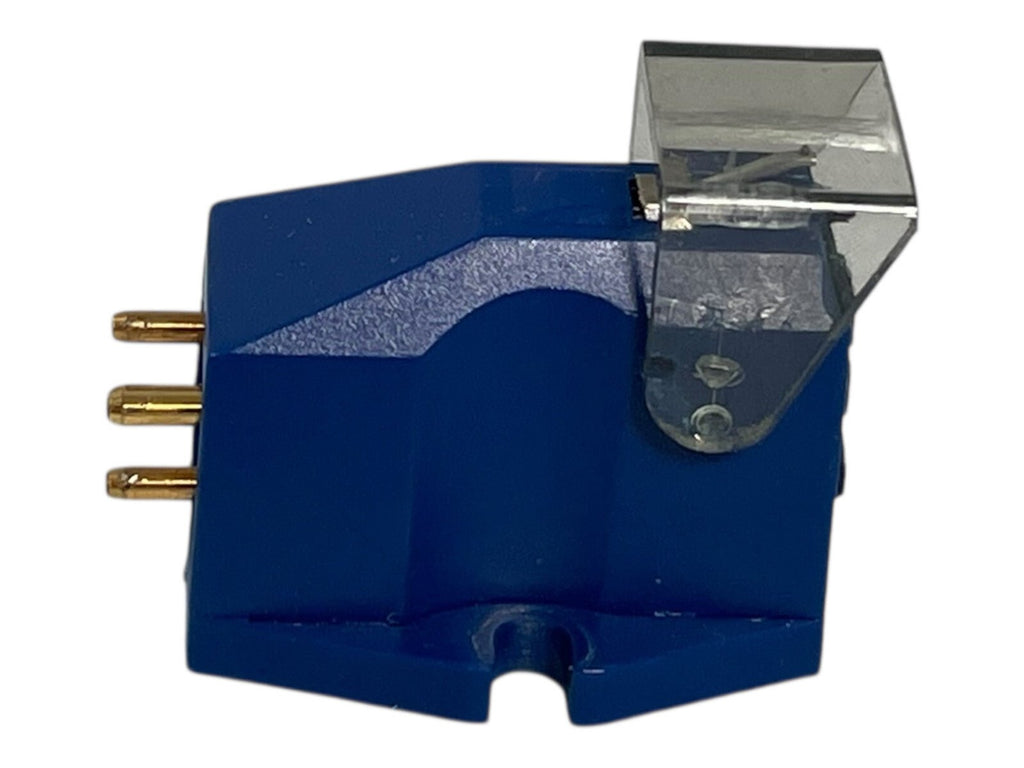

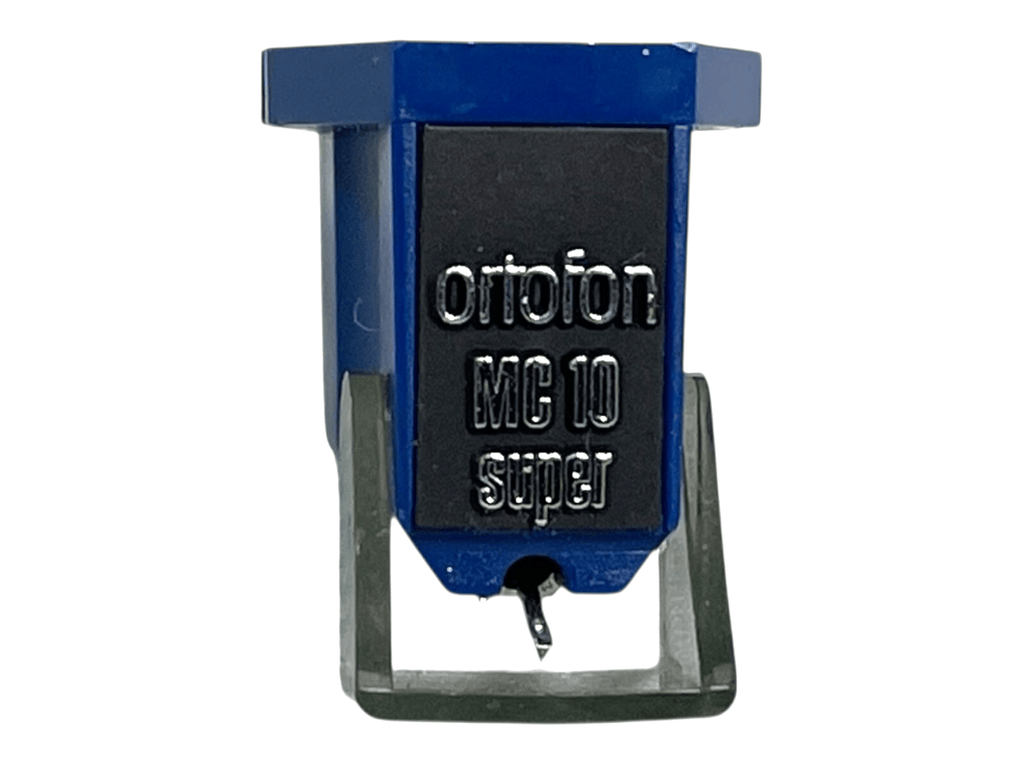

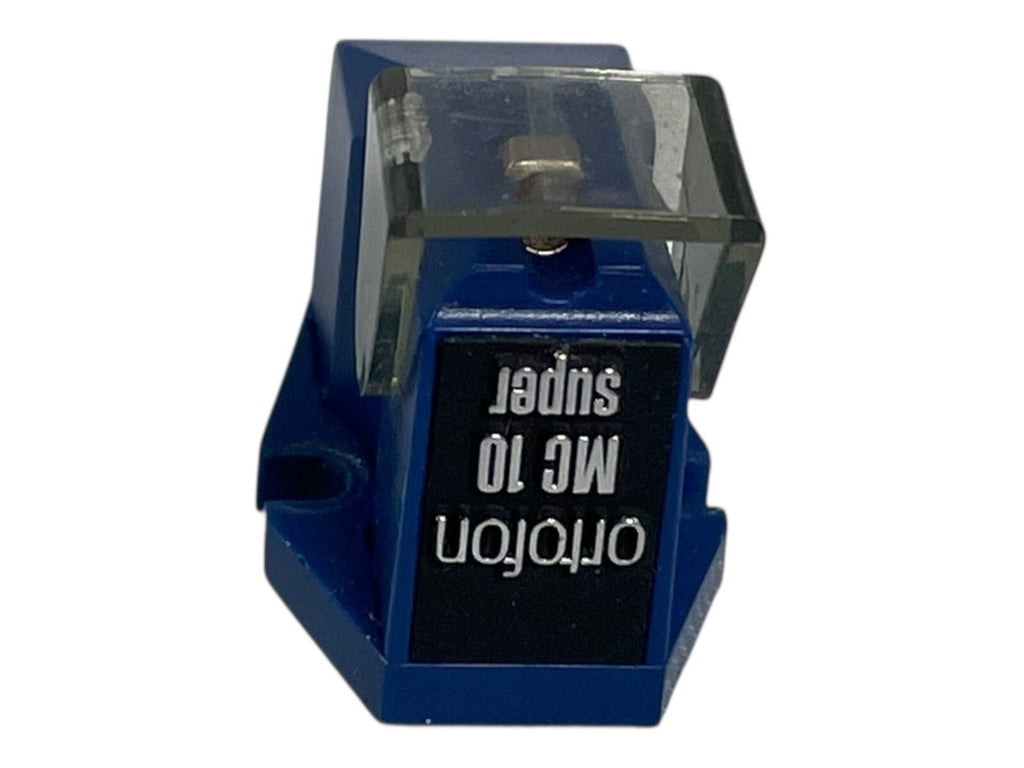

Ortofon MC10 Super Moving Coil Low Output Tunrtable Cartridge
Regular price
£99.99
Technical Specifications
Output Voltage: 0.3 mV at 1 kHz, 5 cm/sec
Stylus Type: Nude elliptical diamond (tip radius: 8 x 18 µm)
Cantilever: Aluminum
Frequency Response: 20 Hz – 20,000 Hz (±4 dB / –1 dB)
Channel Separation:
25 dB at 1 kHz
Channel Balance: <1.5 dB
Tracking Force: 1.3 – 1.8 g (recommended: 1.5 g)
Dynamic Compliance: 14 µm/mN (horizontal/vertical)
Internal Impedance: 3 ohms
Recommended Load Impedance: ≥10 ohms
Weight: 7 g
Vertical Tracking Angle: 20°
