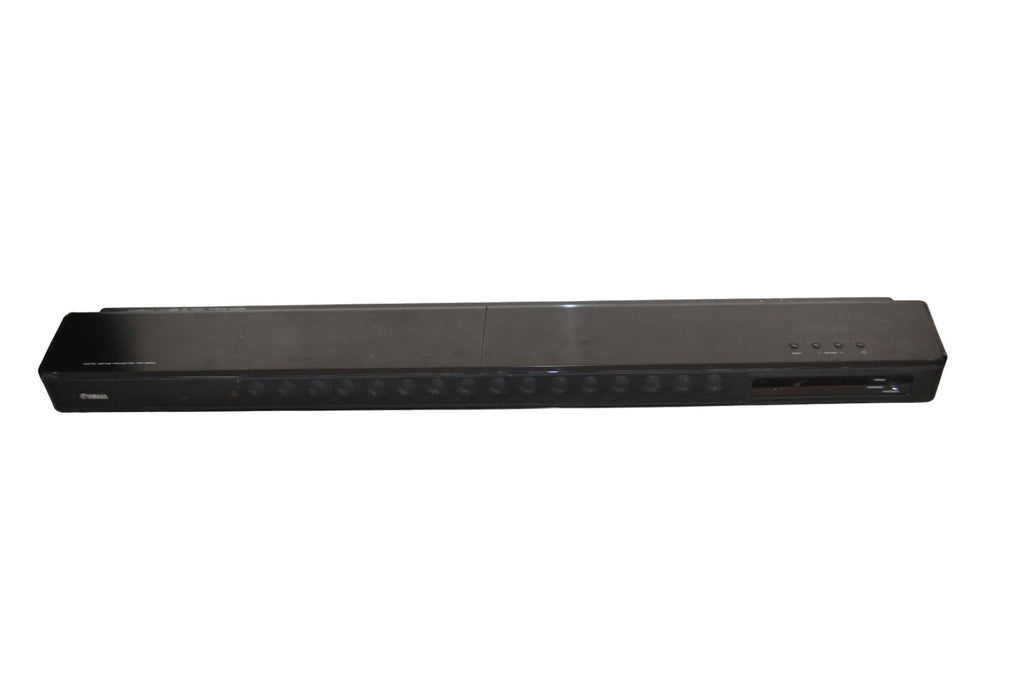

Yamaha NS-SWP600 YSP2200 Soundbar with Subwoofer £1000NEW £100 HERE PRELOVED

£99.99

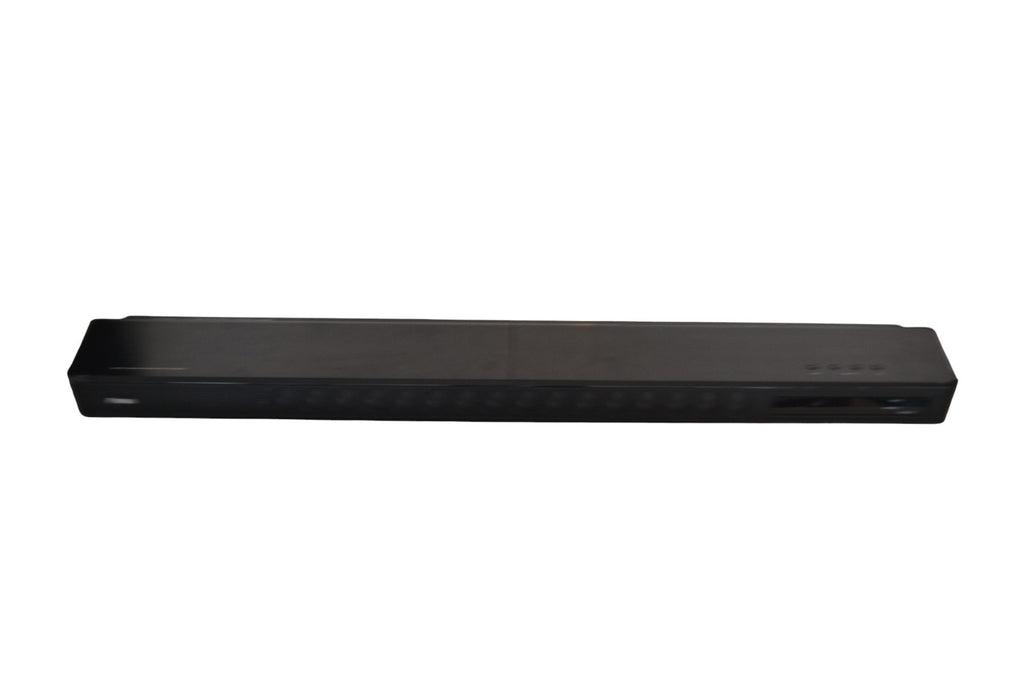

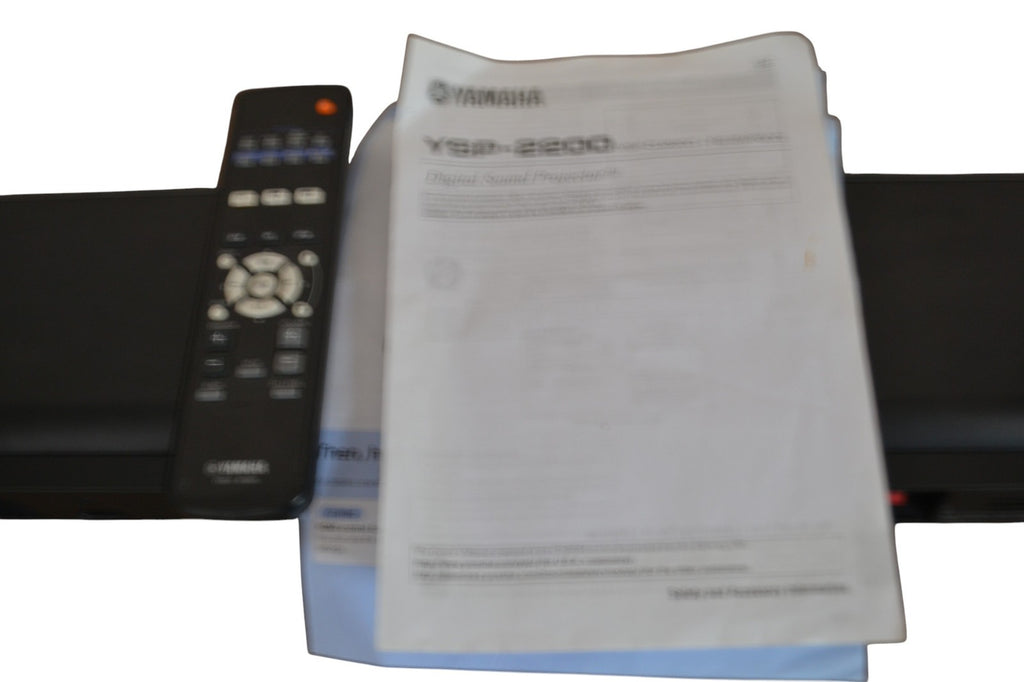

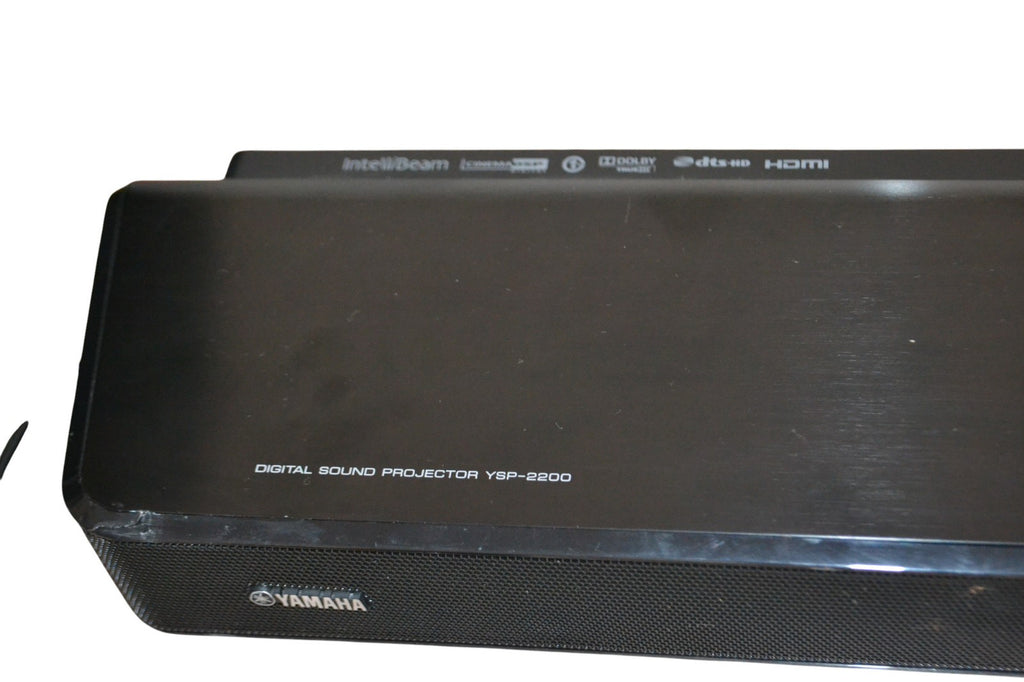

Good condition but some light marks. Note the area on the left of the soundbar that has had the plastic trim glued near the corner. In good working order with sound bar, sub, remote and instructions.

YAMAHA YSP‑2200 SYSTEM SPECIFICATION

System Type:

  • Digital Sound Projector with separate passive subwoofer

  • Simulated 7.1-channel surround via 16 beam drivers

  • IntelliBeam automatic calibration system

Power Output:

  • Total system power: 132 watts
    – 16 × 1.7 W (beam drivers)
    – Subwoofer: 70–100 W (powered by main unit)

Audio Processing:

  • Supported audio formats:
    – Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Pro Logic IIx
    – DTS-HD Master Audio, DTS-HD High Resolution, DTS-ES, DTS Neo:6
    – LPCM (Linear PCM) 2ch/5.1ch/7.1ch

  • DSP modes:
    – 5BeamPlus2, 3BeamPlus2 + Stereo, 5 Beam, Stereo + 3 Beam, 3 Beam, Stereo
    – “My Surround” custom mode

  • CINEMA DSP programs: 11 total
    – Movie: Sci-Fi, Adventure, Spectacle
    – Music: Music Video, Concert Hall, Jazz Club
    – Entertainment: Sports, Talk Show, Drama, Game, Music Channel

  • Enhancements:
    – Compressed Music Enhancer
    – UniVolume (volume leveling)

Drivers:

  • Beam drivers: 16 × 2.8 cm (1 1/8 inch)

  • Subwoofer drivers: 2 × 10 cm (4 inch) bass-reflex

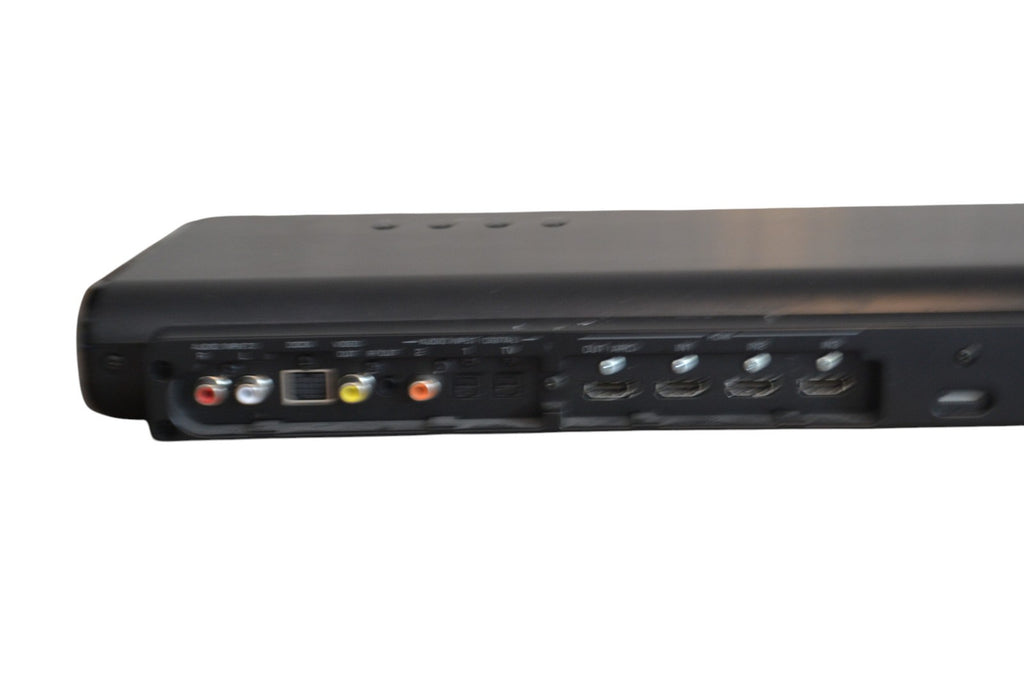

Connectivity:

  • HDMI: 3 inputs, 1 output (version 1.4a – 3D, ARC, CEC, Deep Color)

  • Digital audio: 2 optical inputs, 1 coaxial input

  • Analog audio: 1 stereo RCA input

  • Composite video output

  • IntelliBeam microphone input

  • Dock port (for optional iPod/Bluetooth accessories)

  • IR out (pass-through)

Frequency Response:

  • Approx. 40 Hz – 20 kHz (in stereo mode)

Dimensions:
Soundbar (YSP-CU2200):

  • Width: 944 mm

  • Height: 79–89 mm (adjustable feet)

  • Depth: 145 mm

  • Weight: 4.3 kg

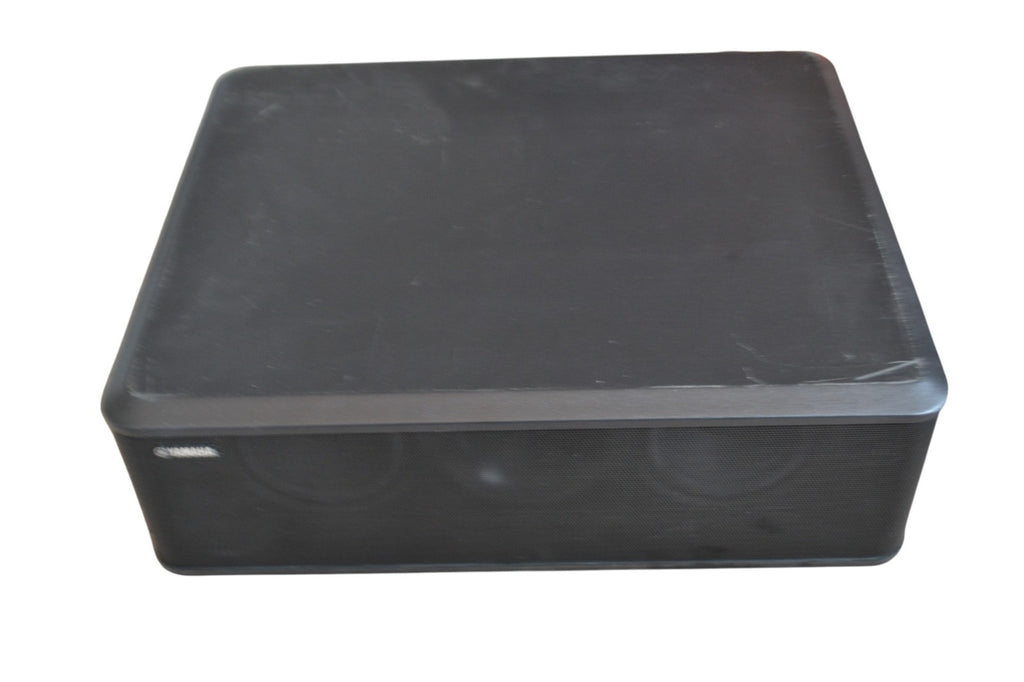

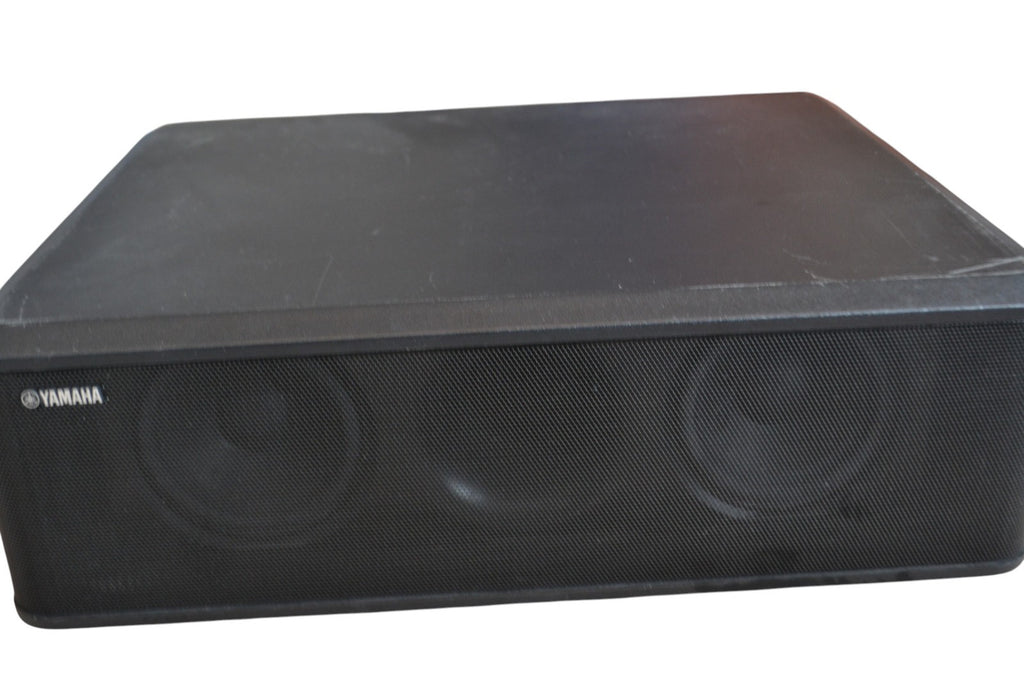

Subwoofer (NS-SWP600):

  • Width: 435 mm

  • Height: 137 mm (horizontal) or 430 mm (vertical)

  • Depth: 350 mm

  • Weight: 6.0 kg

Power Consumption:

  • Operating: approx. 55 W

  • Standby (HDMI off): 0.5 W

  • Standby (HDMI on): 4.0 W
