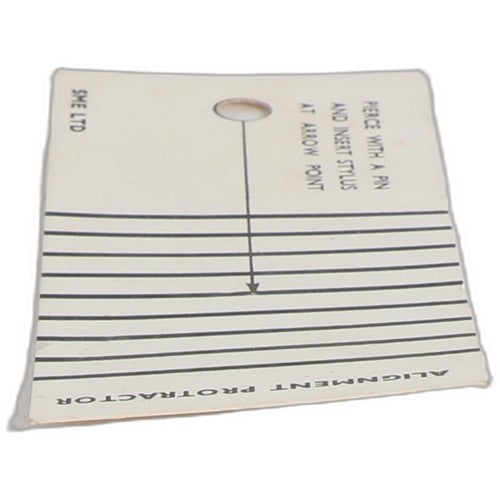

SME 3009 Series II cartridge alignment protractor, card stock in clean condition with no splits or tears.

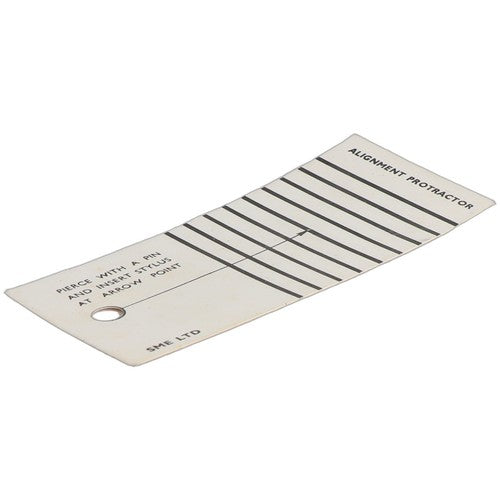

This is an SME alignment protractor for setting up cartridges fitted to the SME 3009 and 3012 tonearms, covering Series I, II, II Improved and III variants. It uses printed parallel reference lines and a stylus-locating hole to check overhang and offset angle against SME's specified geometry.
Key specifications
Compatible Model: SME 3009, 3012 Series I, II, II Improved, III
Pivot-to-Spindle Distance: 221.80 mm
Effective Length (pivot to stylus): 237.25 mm
Overhang: 15.44 mm
Offset Angle: 22.01°
Specifications
Compatible Brand: SME
Colour: White
Compatible Model: SME 3009, 3012 Series I, II, II Improved, III
Compatible Product Line: SME 3009 and 3012 tonearms
Country of Origin: United Kingdom
Alignment Geometry (late arms, S/N ≥439606): Baerwald — dual null points at 66 mm and 121 mm
