Marantz PM5004 Integrated Amplifier MM Phono Stage Black Tested Working UK

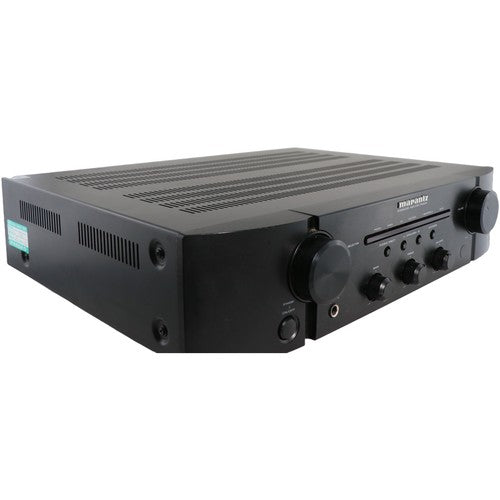

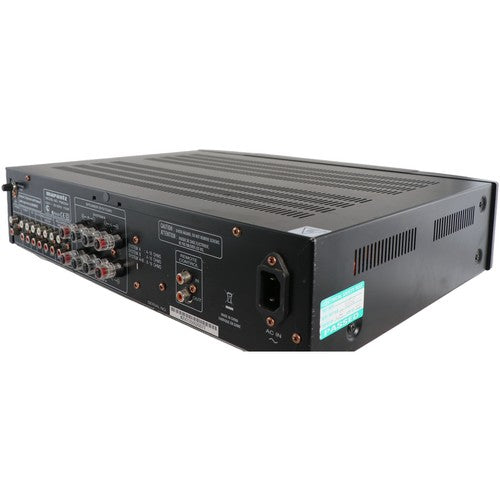

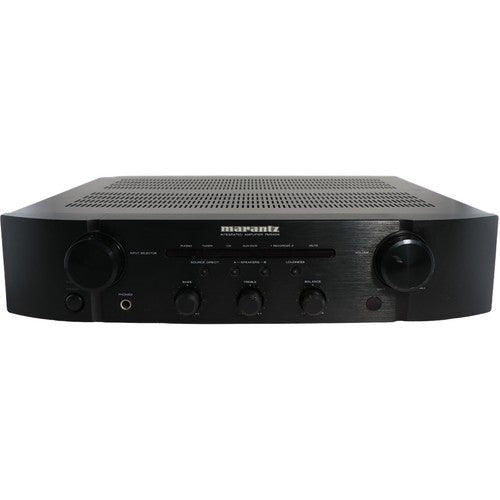

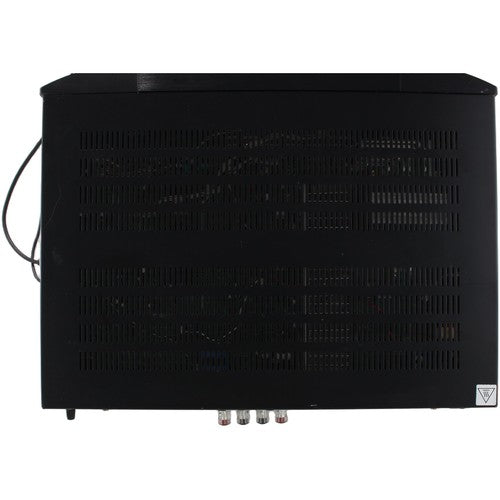

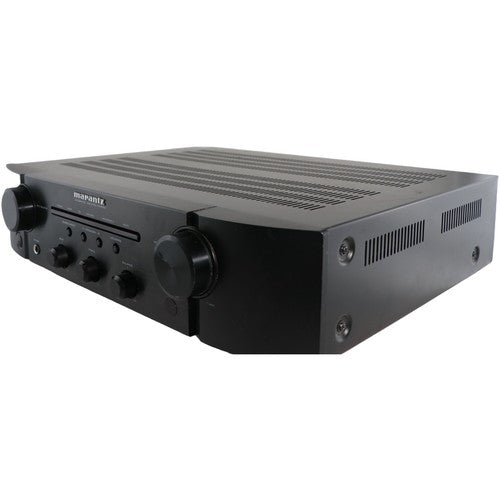

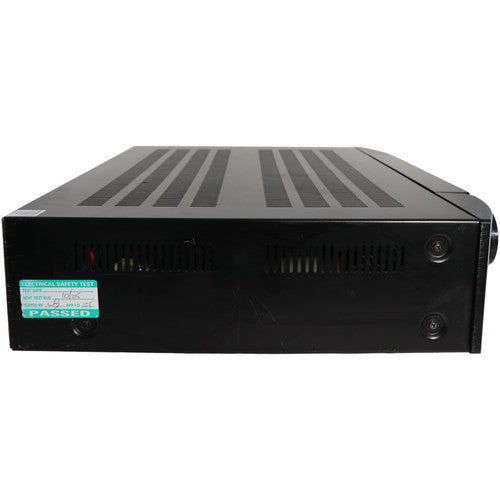

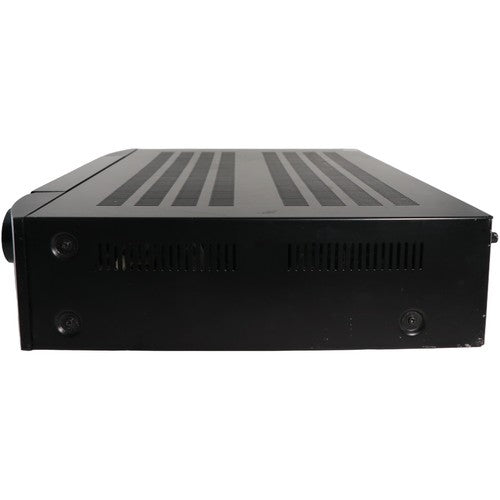

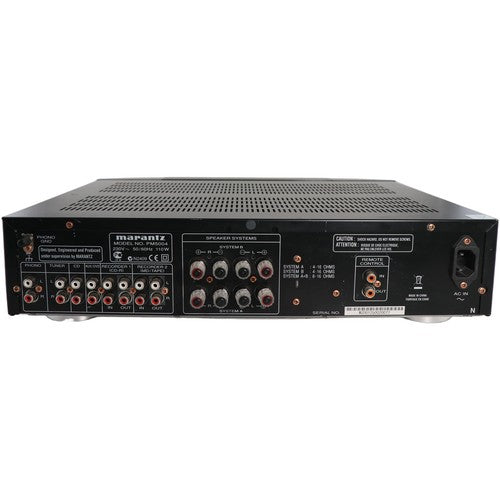

Marantz PM5004 integrated amplifier, good cosmetic condition with a few scuffs, in full working order. No remote control.

The Marantz PM5004 is a solid-state integrated amplifier built around Marantz's discrete Current Feedback circuit technology with an HDAM SA-3 module and a toroidal power transformer. It offers six line-level and MM phono inputs and drives loudspeakers rated between 4 and 16 ohms.

Key specifications

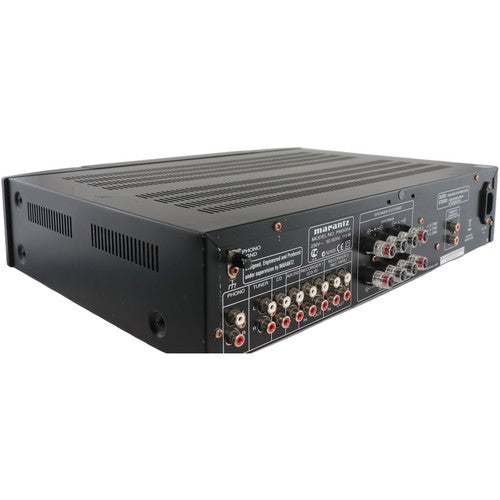

• Input Types: 5 line-level (RCA) + 1 MM phono (RCA), gold-plated
• Total Harmonic Distortion: 0.08% (at rated power, 8Ω)
• Signal-to-Noise Ratio: 83 dB (MM phono); 102 dB (line)
• Amplifier Topology: Fully discrete solid-state; Current Feedback circuit technology

Specifications

• Audio Inputs: 5
• Colour: Black
• Number of Channels: 2
• Number of Inputs: 6
• Power: 45W per channel (8Ω); 60W per channel (4Ω)
• Country of Origin: China
• Year Manufactured: 2010s
• Amplifier Topology: Fully discrete solid-state; Current Feedback circuit technology
• Frequency Response: 10 Hz – 70 kHz
• Total Harmonic Distortion: 0.08% (at rated power, 8Ω)
• Signal-to-Noise Ratio: 83 dB (MM phono); 102 dB (line)
• Speaker Load Impedance: 4Ω – 16Ω
• Dimensions: 440 × 105 × 370 mm
• Weight: 7.4 kg
• Mains Voltage: 240V
• HDAM Module: SA-3
• Power Transformer: Toroidal
• Input Types: 5 line-level (RCA) + 1 MM phono (RCA), gold-plated
