NAD D 3045 Hybrid Digital DAC Integrated Amplifier New Sealed Boxed MM Phono

NAD D 3045 Hybrid Digital Integrated Amplifier DAC. New sealed in box.

The NAD D 3045 is a compact hybrid digital integrated amplifier with a built-in DAC, combining an analogue moving magnet phono stage with digital inputs including USB, optical, coaxial and HDMI ARC, plus two-way Bluetooth aptX HD.

Key specifications

• Analog Inputs: RCA stereo line (Line 2), 3.5 mm mini-jack line (Line 1), Moving Magnet phono (RCA with ground)
• Digital Inputs: 1× coaxial S/PDIF, 2× optical (TosLink), 1× asynchronous USB (Type B), 1× HDMI ARC
• Phono Stage: Moving Magnet (MM) only; RIAA equalization; infrasonic filter
• Wireless: Bluetooth aptX HD (bi-directional / two-way; 24-bit Hi-Res)

Specifications

• Audio Inputs: 3
• Audio Outputs: Analog stereo pre-out (RCA); 1/8th in headphone
• Colour: black
• Features: Digital
• Number of Channels: 2
• Power: 60W per channel into 4 and 8 Ohms
• Country of Origin: United Kingdom
• Mains Voltage: 240V
• Power Output: 60W
• Dynamic (IHF) Peak Power: 80 W (8 Ω) / 150 W (4 Ω) / 200 W (2 Ω)
• THD (Amplifier Section, 20 Hz–20 kHz): <0.005% at 1 W (4 Ω and 8 Ω)
• Signal-to-Noise Ratio (Amplifier): >98 dB (A-weighted, ref. 2.828 V out / 4 Ω)
• Damping Factor: >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
• Analog Inputs: RCA stereo line (Line 2), 3.5 mm mini-jack line (Line 1), Moving Magnet phono (RCA with ground)
• Digital Inputs: 1× coaxial S/PDIF, 2× optical (TosLink), 1× asynchronous USB (Type B), 1× HDMI ARC
• Wireless: Bluetooth aptX HD (bi-directional / two-way; 24-bit Hi-Res)
• DAC / USB Hi-Res Support: Up to 24-bit/384 kHz PCM + native DSD256 + MQA (USB); up to 24-bit/192 kHz (coaxial/optical)
• Outputs: Speaker binding posts (5-way, 1 stereo pair); RCA pre-out/subwoofer out; 3.5 mm headphone jack (front)
• Phono Stage: Moving Magnet (MM) only; RIAA equalization; infrasonic filter
• Dimensions (W × H × D, vertical orientation): 2.8 × 9.9 × 10.5 in (71 × 251 × 267 mm)
• Weight: 7.9 lb (3.6 kg)
• IHF Dynamic Power: 80W (8Ω), 150W (4Ω), 200W (2Ω)
• Standby Power Consumption: <0.5W
• Net Weight: 3.6 kg (7.9 lb)

Included

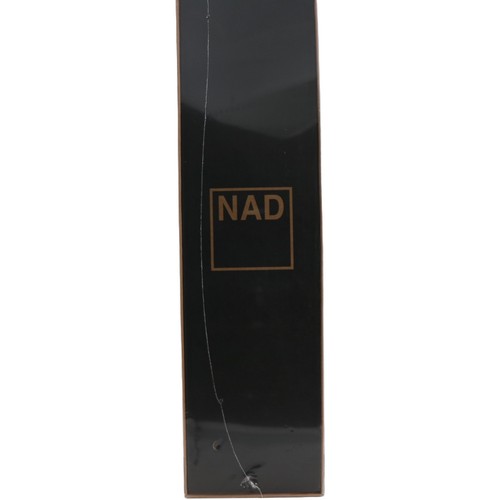

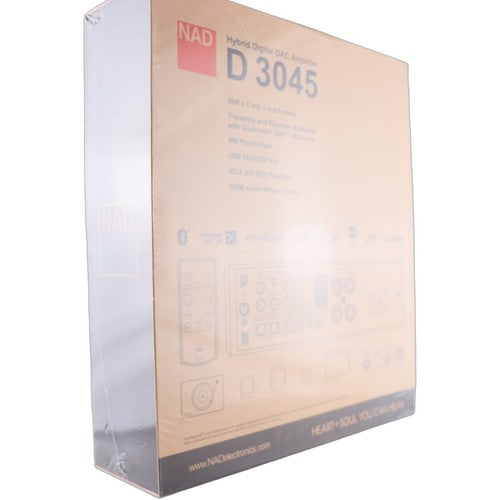

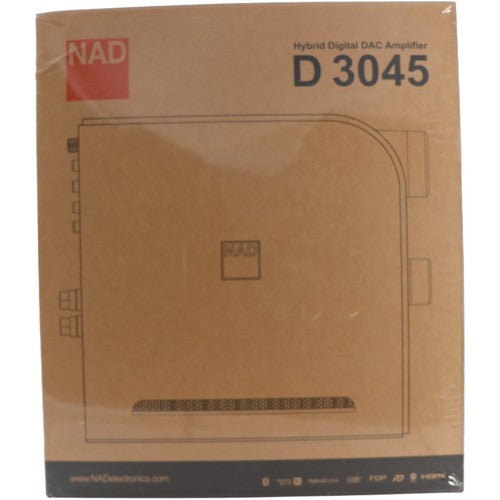

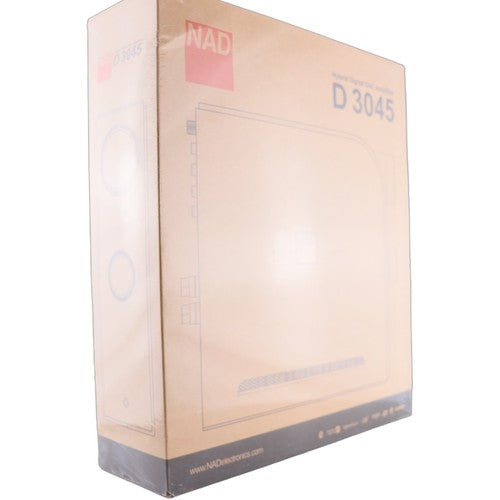

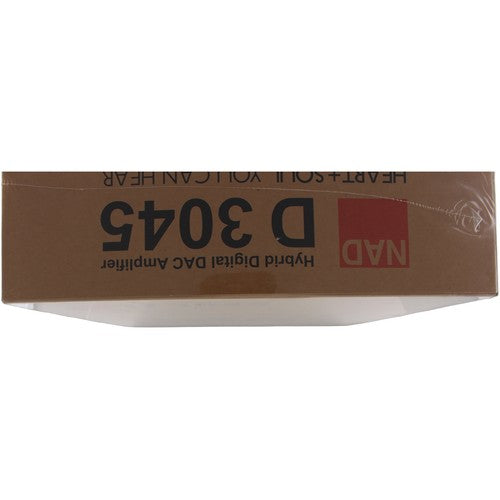

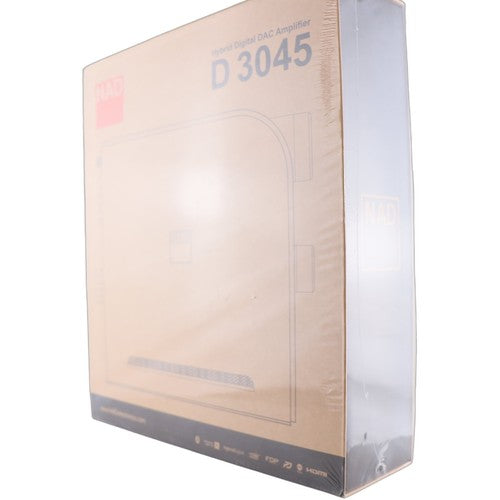

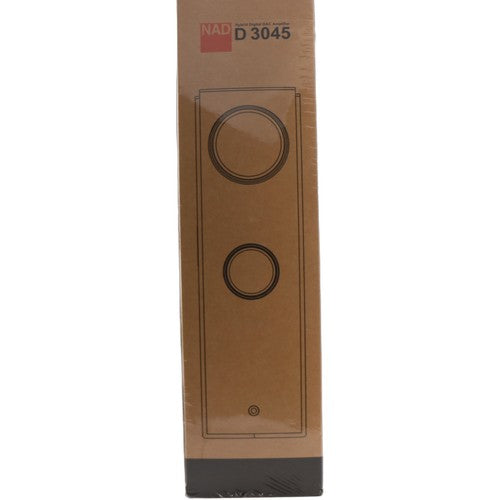

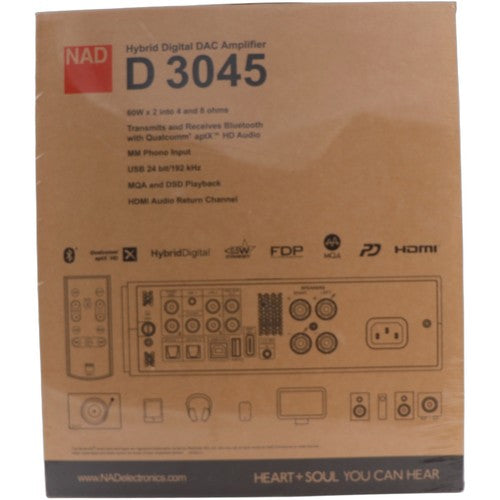

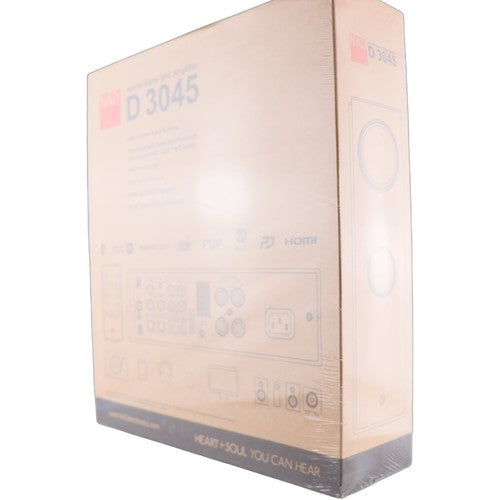

• Original sealed retail box
• Internal foam packaging insert
