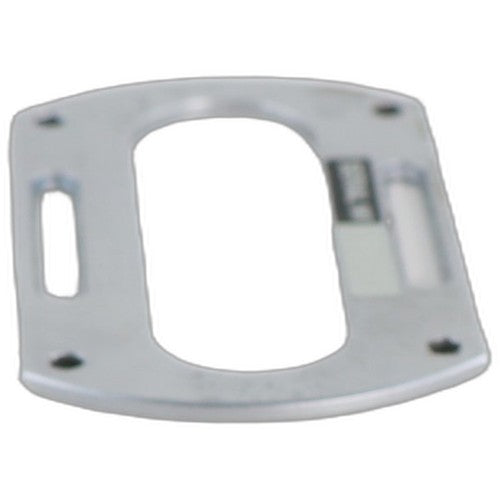

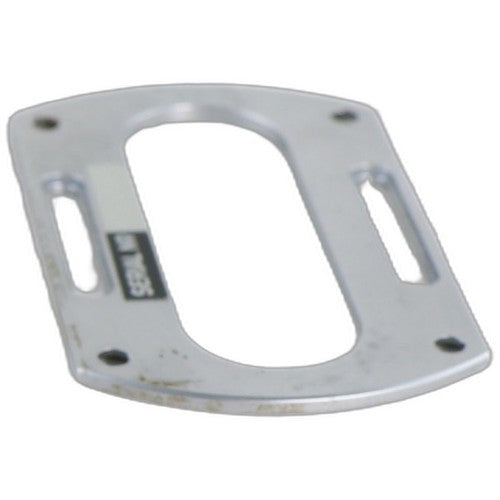

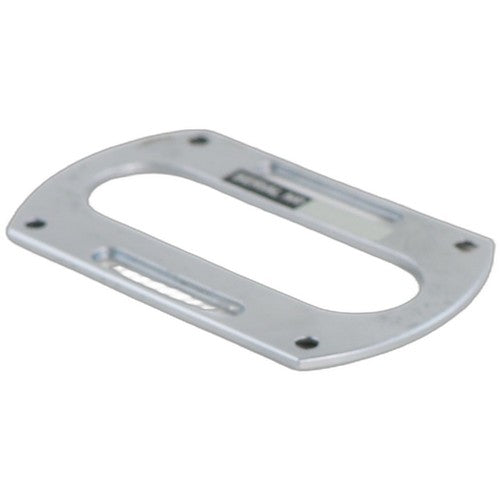

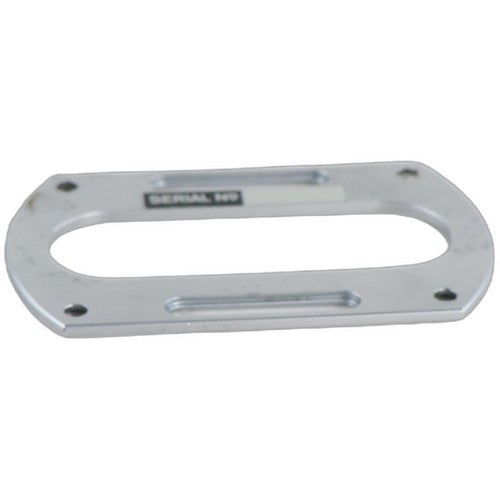

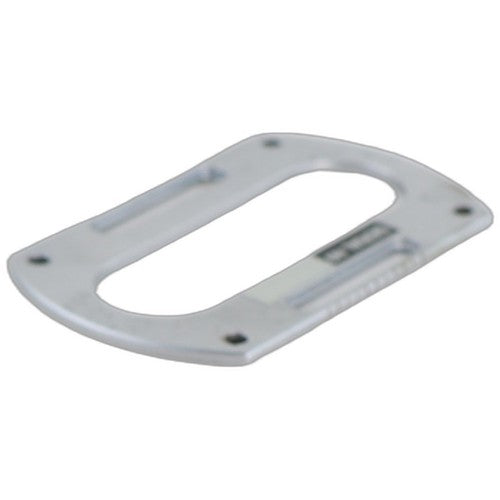

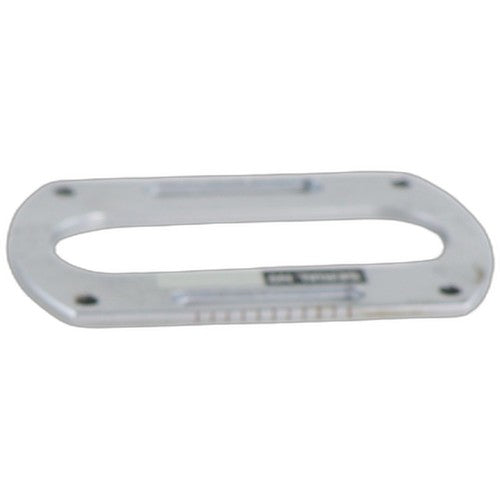

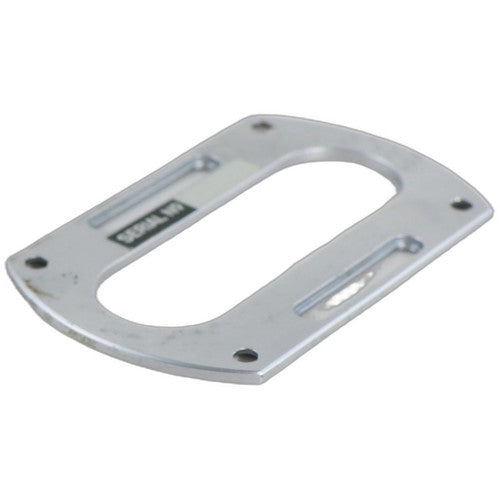

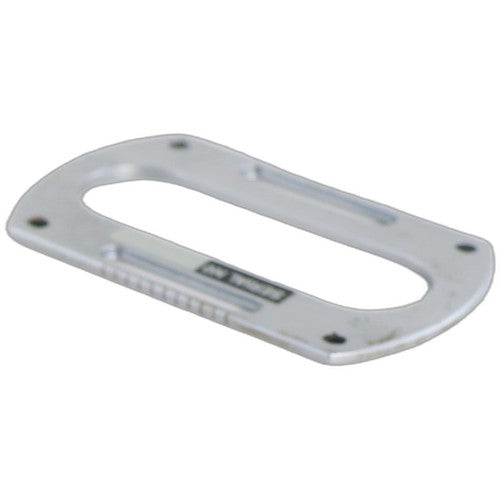

SME 3009 Series II early bedplate base plate, graduated markings, good used condition. Supplied without bedplate grommets.

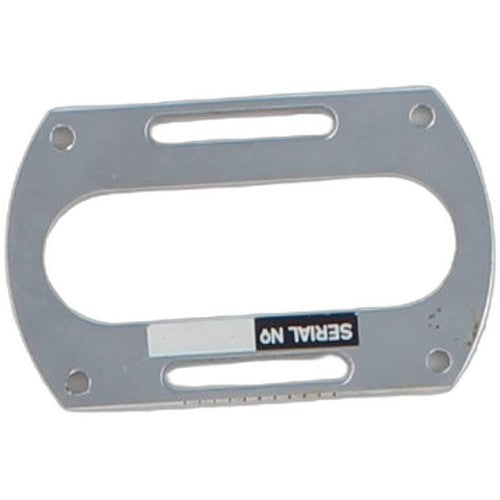

This is the bedplate (base plate) for an SME 3009 Series II tonearm, early variant. The bedplate forms the sliding mounting base allowing the arm to move fore and aft for overhang and tangency adjustment. The graduated markings on the top surface are a distinguishing feature of the Series II bedplate, not present on the later Series II Improved version.
Key specifications
Bedplate Diameter: 82.4 mm (circular with arc cut from both sides)
Spindle-to-Bedplate-Centre Distance: 215.4 mm (nominal)
Series II Bedplate Distinguishing Feature: Red graduated markings on top surface (absent on Series II Improved bedplate)
Compatible Product Line: SME 3009 Tonearms
Specifications
Compatible Brand: SME
Colour: Silver
Compatible Model: SME 3009 Series II (early)
Compatible Product Line: SME 3009 Tonearms
Country of Origin: United Kingdom
Function: Sliding mounting base; arm slides fore/aft along bedplate for overhang/tangency adjustment
Bedplate Diameter: 82.4 mm (circular with arc cut from both sides)
Spindle-to-Bedplate-Centre Distance: 215.4 mm (nominal)
Series II Bedplate Distinguishing Feature: Red graduated markings on top surface (absent on Series II Improved bedplate)
Manufacturer Location: SME Ltd., Steyning, West Sussex, England
