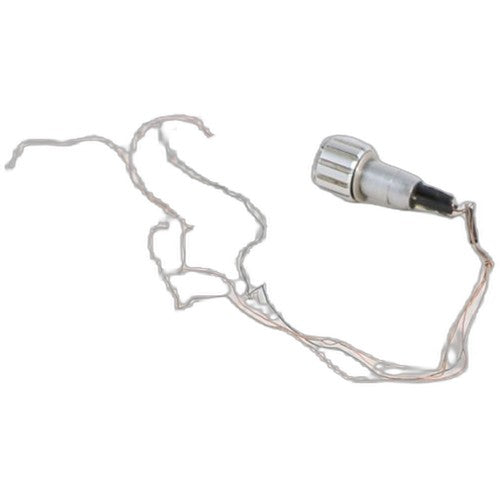

SME 3009 Headshell Socket Series II Improved Tonearm Spare Part Genuine UK

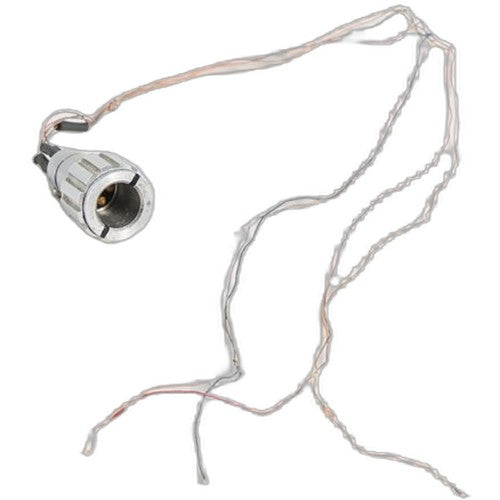

SME 3009 headshell socket, Series II and Series II Improved compatible, spare part with lead-out wires.

This is the headshell socket assembly used on the SME 3009 Series II and Series II Improved tonearms, fitting the same 4-pin bayonet connection on both variants.

Key specifications

• Connector Type: 4-pin bayonet (SME-type / H-4)
• Compatible Model: SME 3009 Series II, SME 3009 Series II Improved
• Retaining / Locking Mechanism: Locking ring with retaining screw

This is the headshell socket assembly used on the SME 3009 Series II and Series II Improved tonearms, fitting the same 4-pin bayonet connection on both variants.

Key specifications

• Connector Type: 4-pin bayonet (SME-type / H-4)
• Compatible Model: SME 3009 Series II, SME 3009 Series II Improved
• Retaining / Locking Mechanism: Locking ring with retaining screw

Specifications

• Compatible Brand: SME
• Colour: Silver
• Compatible Model: SME 3009 Series II, SME 3009 Series II Improved
• Compatible Product Line: SME 3009
• Country of Origin: United Kingdom
• Connector Type: 4-pin bayonet (SME-type / H-4)
• Cross-Compatibility: Same socket fits both SME 3009 Series II and Series II Improved armtubes
• Collar / Arm Tube Bore Diameter: 8.38–8.42 mm (aluminium tube versions)
• Wiring Colour Code: White = Left channel; Red = Right channel; Blue = Left ground; Green = Right ground
• Retaining / Locking Mechanism: Locking ring with retaining screw
• Manufacturer Location: SME (Scale Model Equipment Co. Ltd.), Steyning, West Sussex, Great Britain
• Note on Pushfit / Early Variant: On very early pushfit headshell tonearms, the socket design is the same but the retaining screw hole is blanked off
