SME 3009 Series II dashpot cueing mechanism, early type tested with smooth fast action.

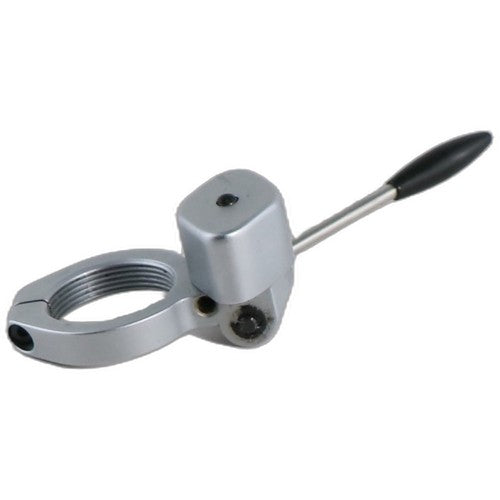

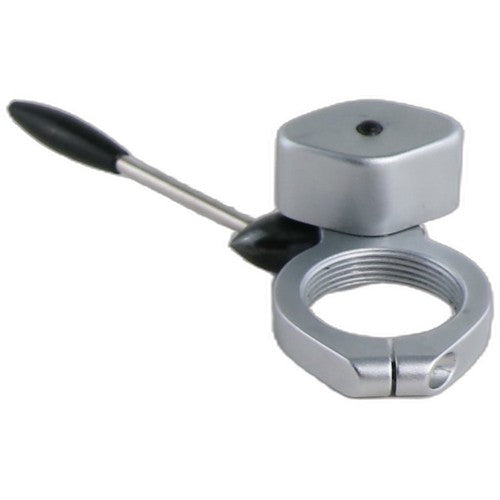

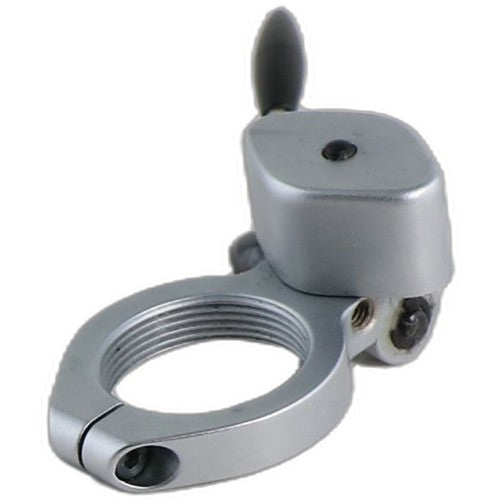

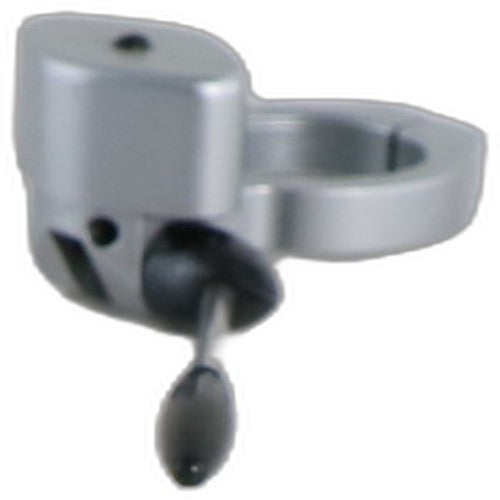

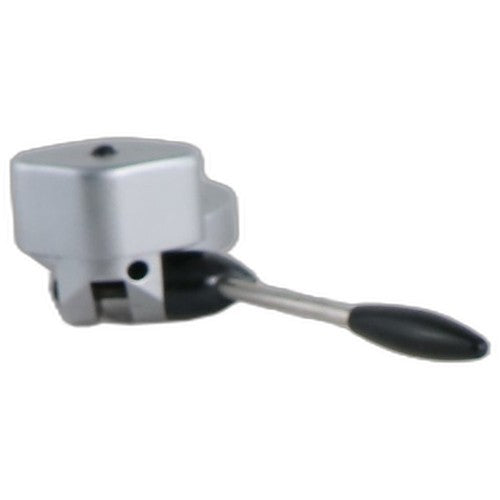

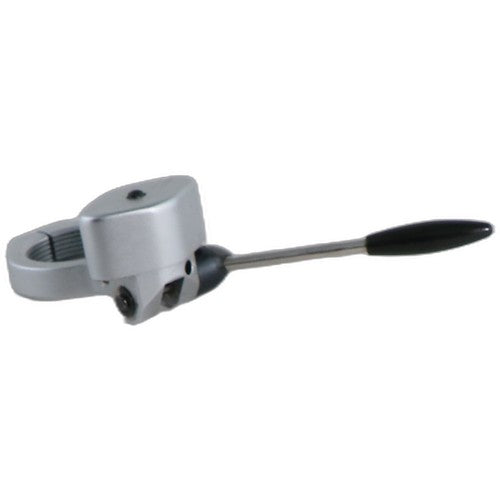

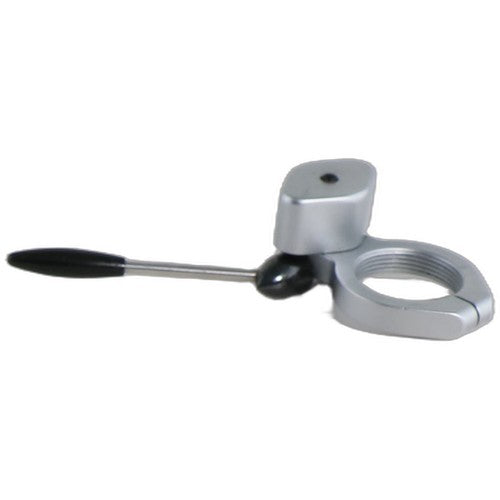

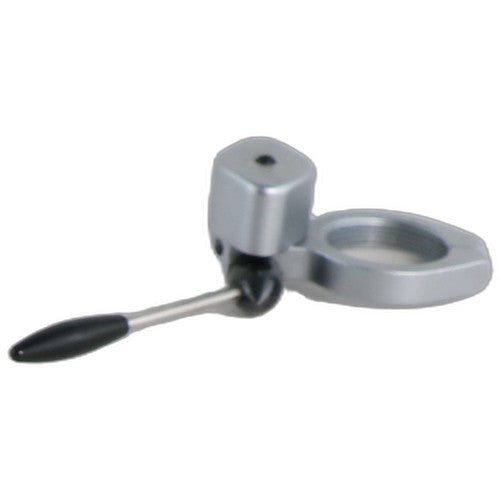

The dashpot cueing mechanism is the damped cueing control fitted to the SME 3009 and 3012 Series II tonearms, allowing the arm to be lowered and raised smoothly onto the record surface. This is an early Series II example of the assembly, comprising the pivot block, threaded locking collar and cueing lever.
Key specifications
Compatible Model: SME 3009 Series II
Damping Fluid: Silicone damping fluid (approx. 1 ml fill); ~300,000 cSt viscosity grade reported in community service records
Compatible Product Line: SME 3009 / 3012 Series II
Specifications
Compatible Brand: SME
Compatible Model: SME 3009 Series II
Compatible Product Line: SME 3009 / 3012 Series II
Country of Origin: England
Year Manufactured: 1960s
Also Known As (SME Service Term): Control Bracket
Damping Fluid: Silicone damping fluid (approx. 1 ml fill); ~300,000 cSt viscosity grade reported in community service records
