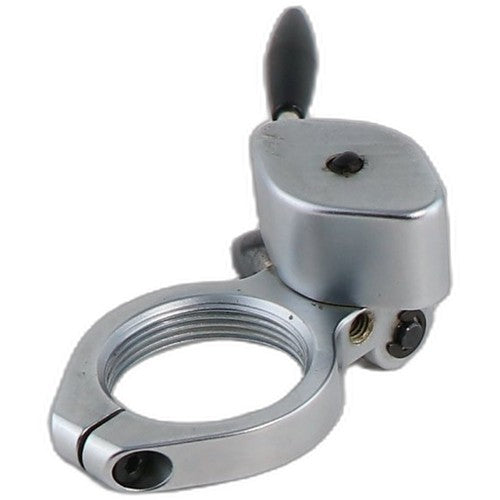

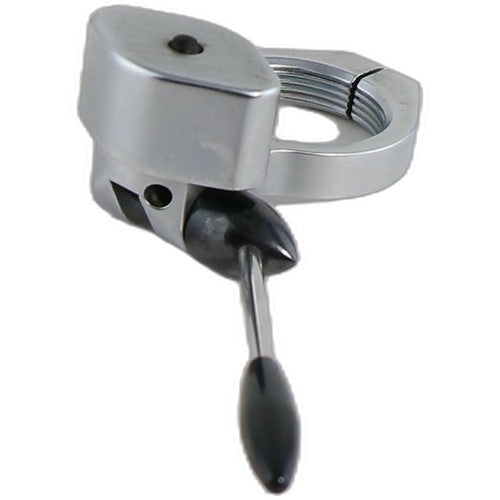

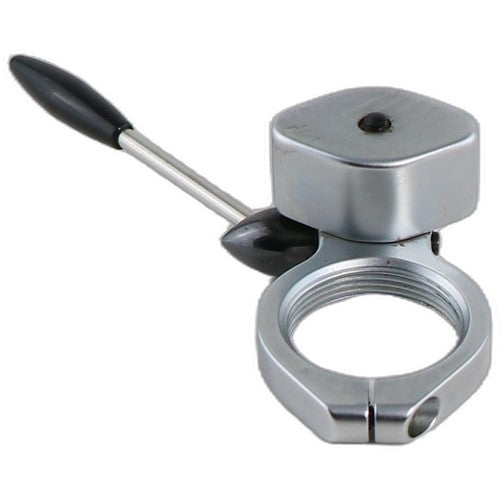

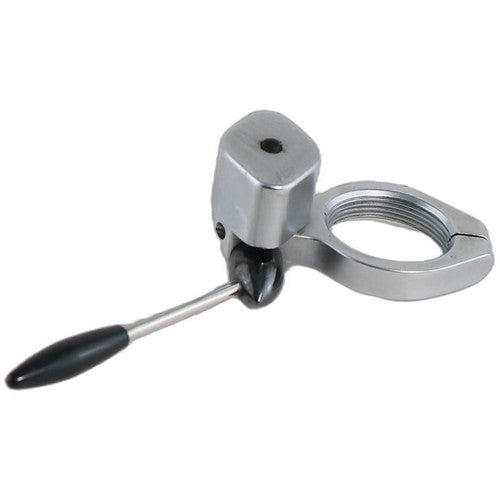

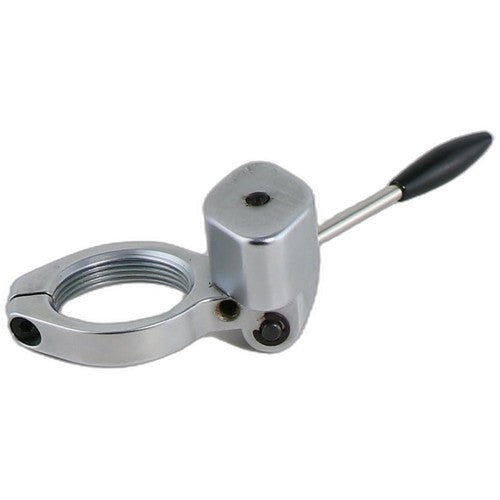

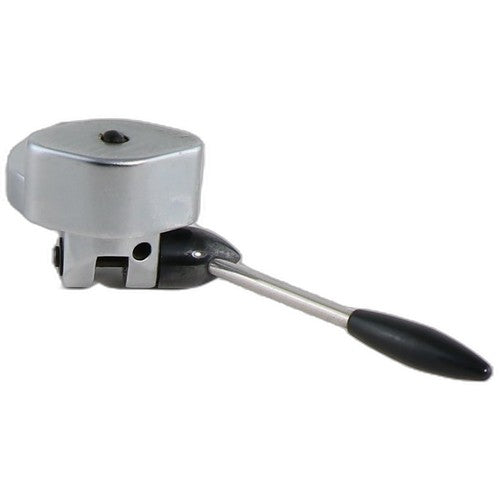

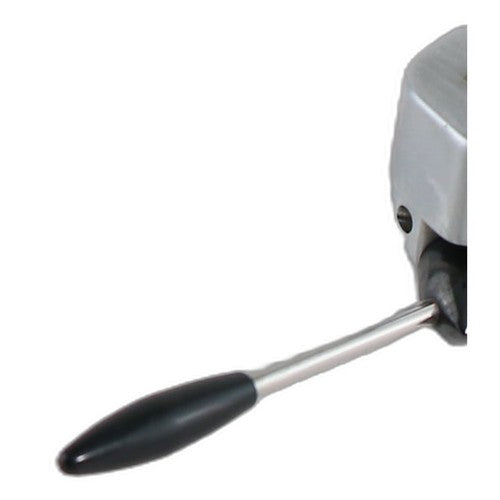

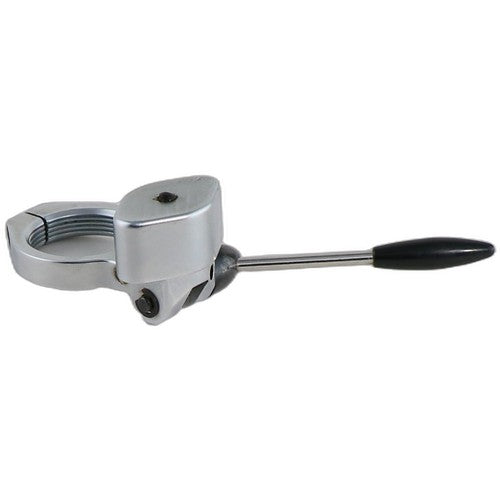

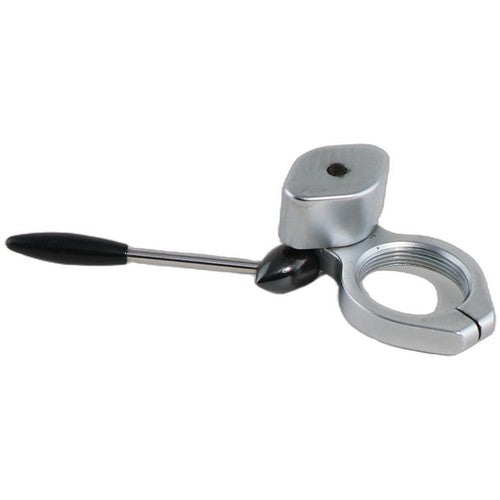

SME 3009 Series II early cueing mechanism lever and dashpot, fully working with fast, smooth cueing action.
This is the cueing mechanism dashpot from an SME 3009 Series II (early, non-Improved) tonearm. It uses a hydraulic piston-in-cylinder design damped with silicone fluid, lifting and lowering the arm tube at a controlled descent speed. The early Series II design has a black round lifting piston that rises vertically from the dashpot body, distinct from the later T-bar arrangement used on the Series II Improved.
Damping Fluid: Silicone damping fluid (SME specification); 1 ml sufficient for full refill
Early Series II Dashpot Design: Black round lifting part (piston/cap) rises vertically from dashpot body to raise arm tube; distinct from later T-bar design on Series II Improved
Piston Material Variants: Brass or aluminium (both variants found on Series II dashpots)
Compatible Model: 3009 Series II
Specifications
Compatible Brand: SME
Colour: Silver
Compatible Model: 3009 Series II
Compatible Product Line: SME 3009 Series II; SME 3012 Series II
Damping Fluid: Silicone damping fluid (SME specification); 1 ml sufficient for full refill
Early Series II Dashpot Design: Black round lifting part (piston/cap) rises vertically from dashpot body to raise arm tube; distinct from later T-bar design on Series II Improved
Key Serviceable Sub-Part (mushroom rubber): SME part no. R1600; rubber 'mushroom' tip on lifting piston; commonly worn/brittle on aged units
Piston Material Variants: Brass or aluminium (both variants found on Series II dashpots)
