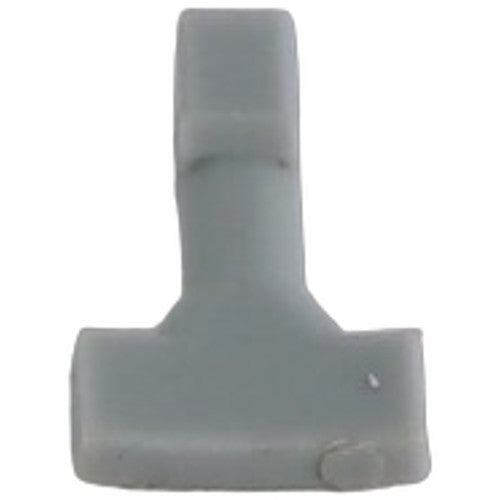

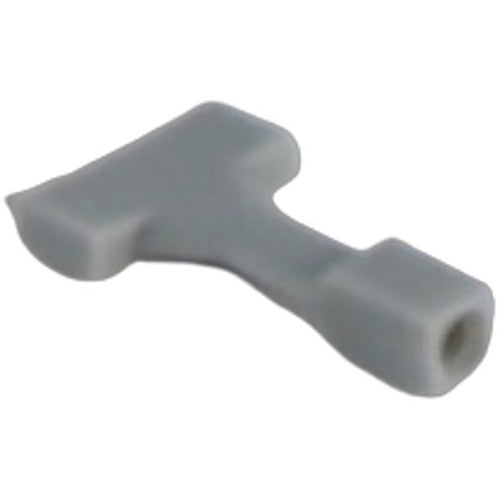

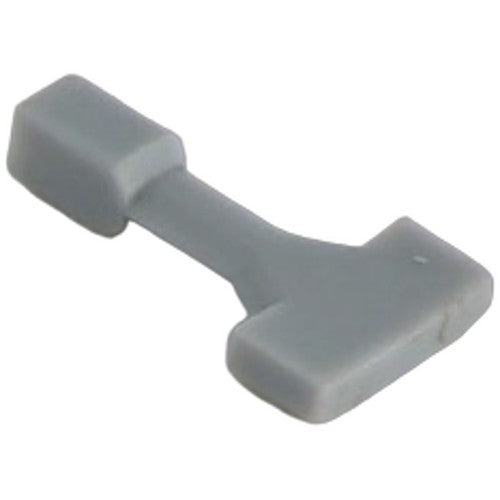

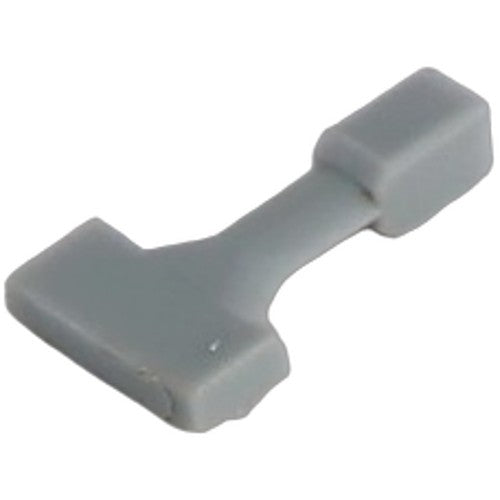

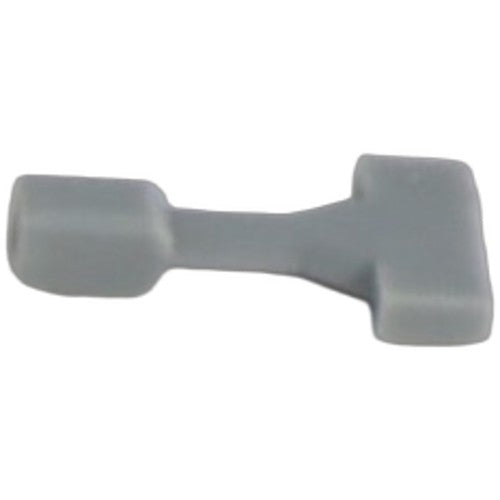

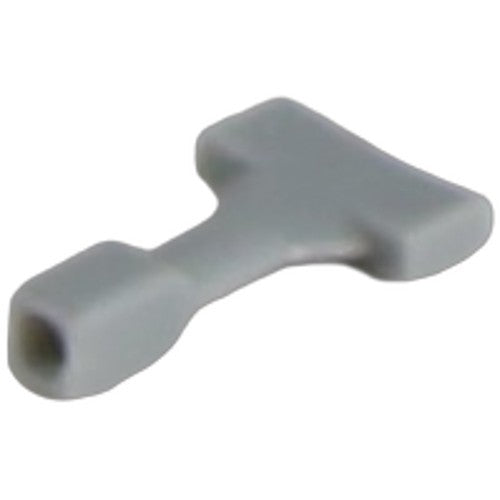

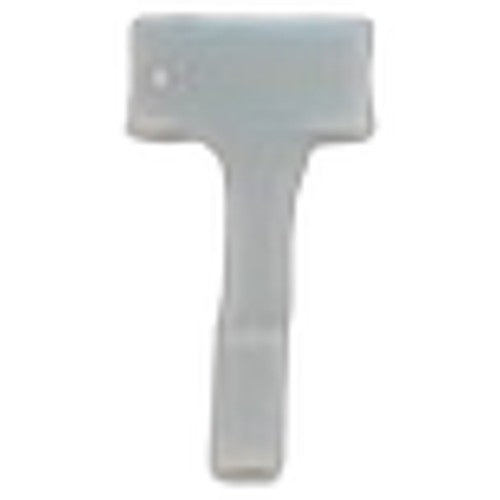

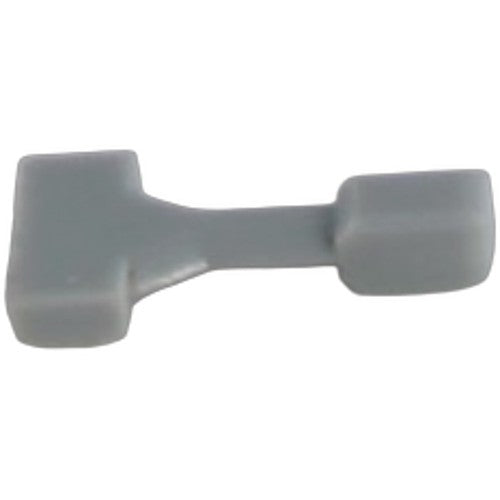

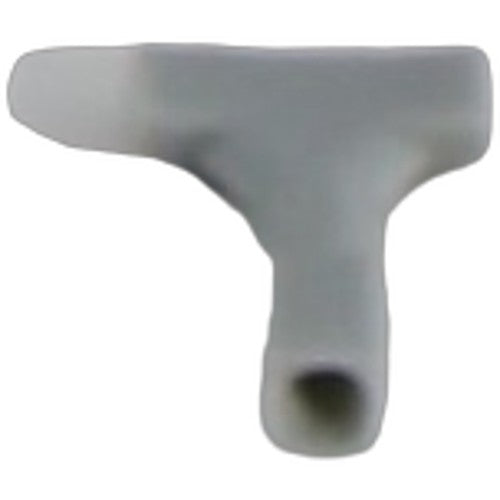

SME FD200 fluid damper grey paddle, original SME part, in good condition.
The SME FD200 is a fluid damper paddle fitted to SME Series II and Series II Improved tonearms, and standard on the Series III. The grey paddle is intended for cartridges with compliance above 20 cu, slotting into the damping trough to control arm resonance.
Key specifications
Grey Paddle Width: 9 mm
Recommended Cartridge Compliance (Grey Paddle): Above 20 cu (compliance units); typically 20–30 cu
Damping Fluid Type: Silicone fluid, 200,000 cSt viscosity (as supplied); 2 ml metered fill per tank
Specifications
Compatible Brand: SME
Colour: Grey
Country of Origin: United Kingdom
Year Manufactured: 1970s
Grey Paddle Width: 9 mm
Recommended Cartridge Compliance (Grey Paddle): Above 20 cu (compliance units); typically 20–30 cu
Paddle Weight: 820 mg
Paddle Mounting Radius: Approximately 1.45 inches from pivot
Effective Mass Addition at Stylus: Less than 21 mg
Damping Fluid Type: Silicone fluid, 200,000 cSt viscosity (as supplied); 2 ml metered fill per tank
Paddle Colour Code Summary (full kit context): White (13 mm) = below 20 cu; Grey (9 mm) = above 20 cu; Black (7 mm) = above 30 cu
