SME FD200 Fluid Damping Trough Black Paddle Clamp Series II Tonearm Genuine
Regular price
£45.00

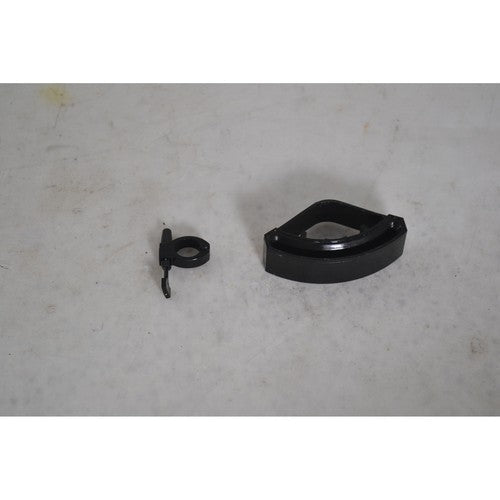

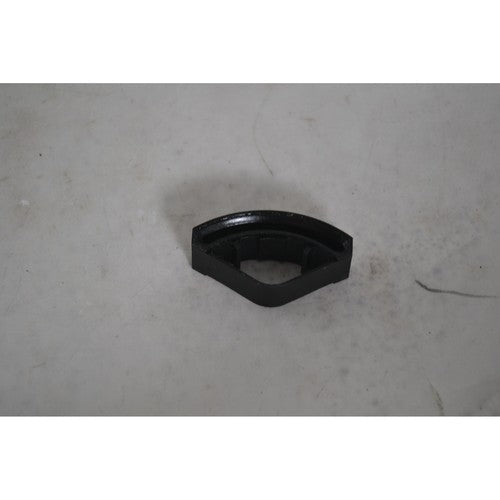

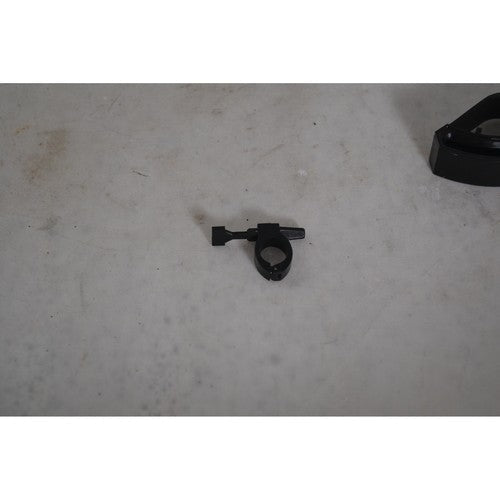

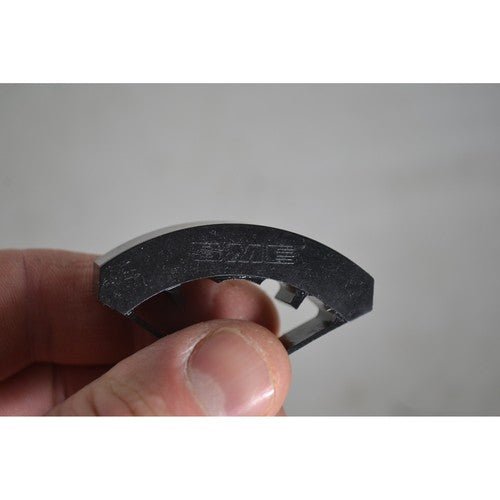

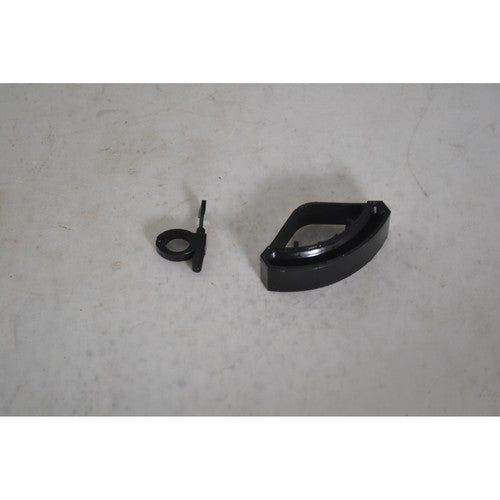

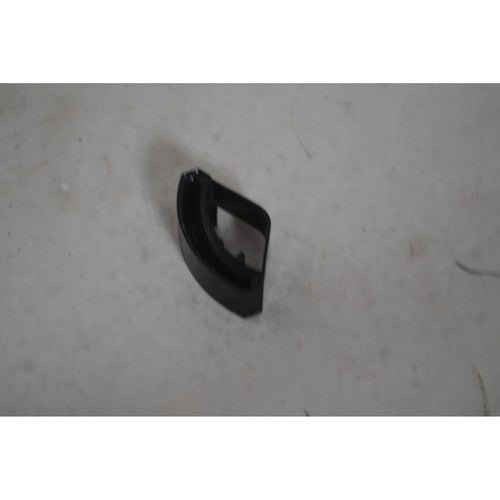

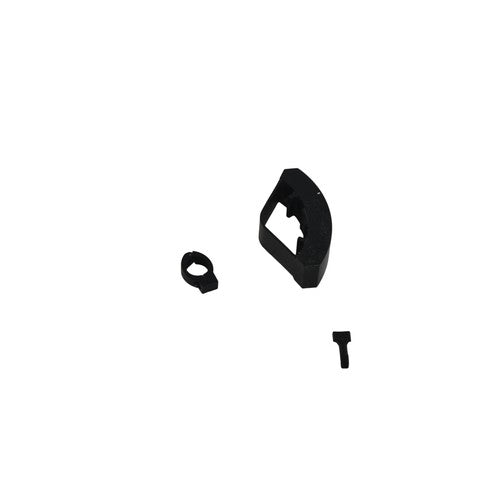

SME FD200 fluid damping trough, paddle, and clamp — genuine SME parts. Fits Series II arms. Good used condition.
Specifications
- Compatible Brand: SME
- Colour: Black
- Compatible Model: SME Series II
- Compatible Product Line: Series II
- Country of Origin: United Kingdom
- Compatible Tonearms: SME 3009 3012 Series II
- Compatible Tonearms: SME 3009 Series II and Series II Improved; also SME 3012 Series II / Series II Improved
- Also Fits (Series III): Also a standard feature on SME Series III; available as retrofit for 3009 Series II Improved
- Kit Contents: Damper tank and cover; flask of FD.200 damper fluid; three paddles (13 mm White, 9 mm Grey, 7 mm Black); paddle clamp; paddle retaining screw; sachet of cartridge seating compound; cam/lever assembly; cam circlip; cam detent pin; cam extractor; arm rest assembly; hexagon wrench; instruction book
- Paddle Widths & Cartridge Compliance Guide: 13 mm White paddle: cartridge compliance below 20 cu; 9 mm Grey paddle: compliance above 20 cu; 7 mm Black paddle: compliance above 30 cu
- Damping Fluid Viscosity (as supplied): 200,000 cSt silicone fluid
- Fluid Fill Volume: 2 ml (one flask = one full tank fill)
- Paddle Unit Weight: 820 mg
- Effective Mass Addition at Stylus: Less than 21 mg (paddle fitted at ~145 mm radius)
- Resonance Damped: 5–6 Hz arm/cartridge low-frequency resonance
Condition
Good condition.
