Now sold
Sold 26 August 2026
This item has sold. It was one of a kind — register interest and we'll contact you if a similar piece arrives.

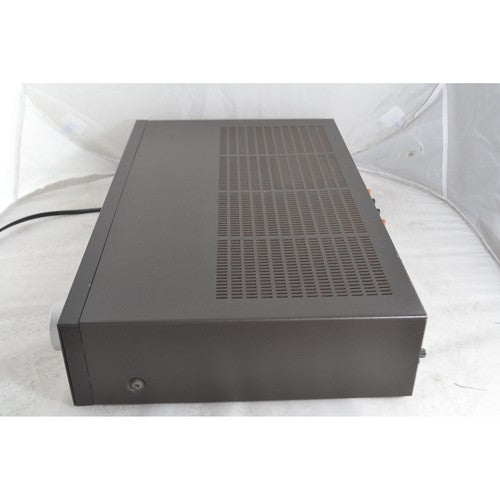

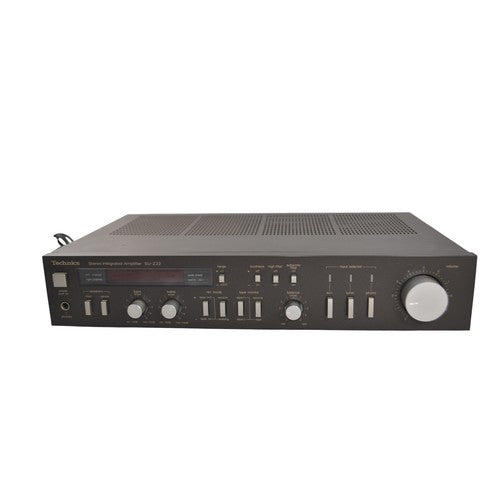

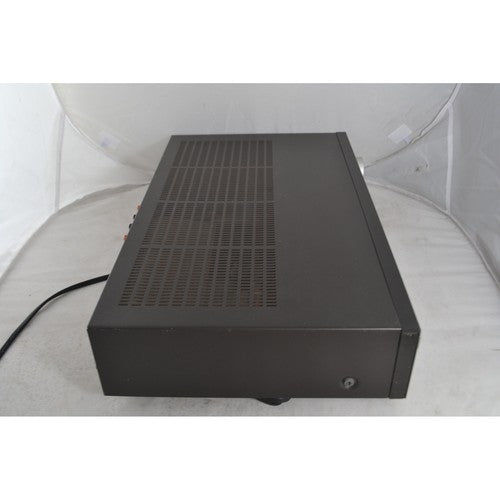

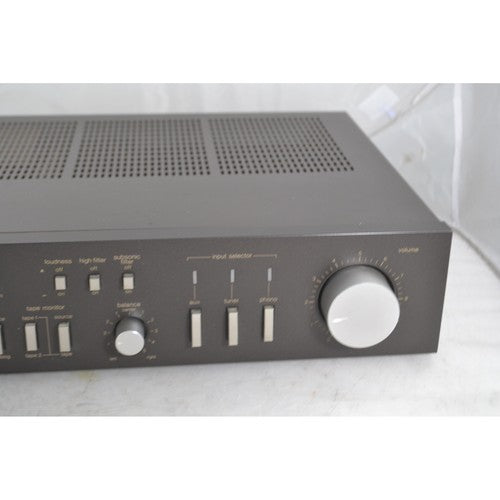

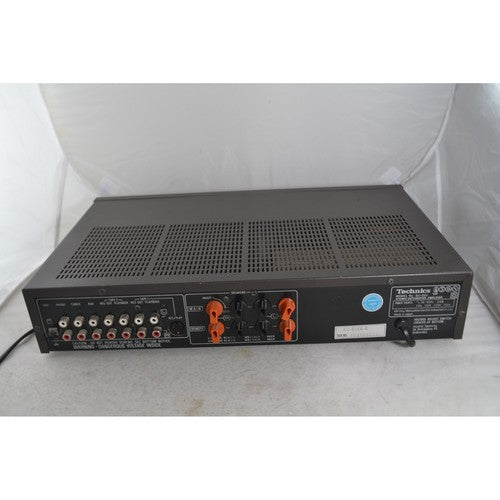

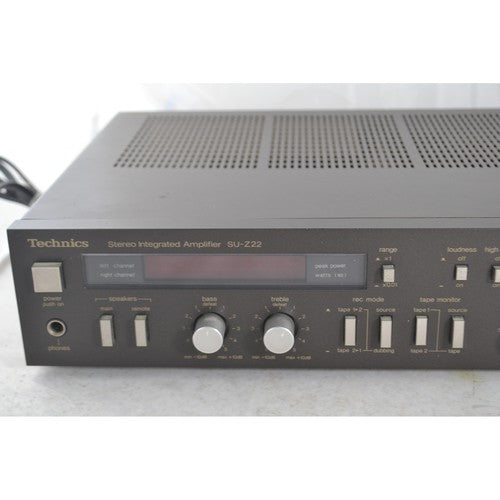

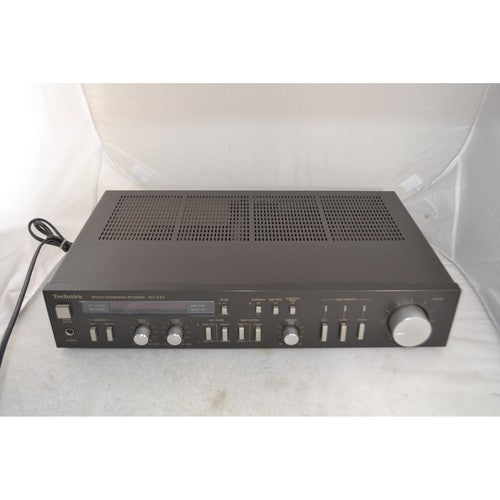

Technics SU-Z22 integrated amplifier in good working order, complete with mains lead. Good cosmetic condition with minor age-related wear.
Specifications
-
Audio Inputs: 5
-
Audio Outputs: 2
-
Colour: Black/Silver
-
Power: 35W per channel into 8Ω (stereo)
-
Supported Modes: Stereo
-
Country of Origin: Japan
-
Year Manufactured: 1980s
-
Total Harmonic Distortion: 0.03% (8Ω)
-
Frequency Response: 10 Hz – 30 kHz (8Ω)
-
Signal-to-Noise Ratio: 80 dB (MM), 97 dB (line)
-
Minimum Speaker Load Impedance: 4Ω
-
Dimensions: 430 × 86 × 288 mm
-
Weight: 5.7 kg
-
Mains Voltage: 240V
-
Power Output (continuous, 4Ω): 2 × 35 W (20 Hz–20 kHz)
-
Input Sensitivity (Phono MM): 2.5 mV
-
Year of Manufacture: 1981–1983
